Send Message
Good price  online

products details

Home > Products >
Solar Energy Storage Batteries
>
Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping

Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping

Model Number: LFP12V100
MOQ: 100pieces
Packaging Details: Carton box
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, RoHS
Battery Type:
LiFePO4 Battery Pack
Voltage:
12V
Capacity:
100Ah
Cycle Life:
2000 Times
Application:
Fishing Boat, Camping Car, Solar Storage
Weight:
14kg
Size:
330*180*240mm
Warranty:
2years
Supply Ability:
5000Pieces daily
High Light:

12V 100AH LFP Battery Pack

,

12V 100AH Pack Solar Energy Battery

,

LiFePO4 Battery For Car Camping

Product Description

Portable 12V 100AH Solar Energy LFP Battery Pack Camping Car Battery



LFP 12V Lithuim LifePO4 Batteries
Model LFP
12V 7Ah
12V 10Ah
12V 20Ah
12V 50Ah
12V 100Ah
12V 200Ah
Nominal Voltage
12.8V
12.8V
12.8V
12.8V
12.8V
12.8V
Nominal Capacity
8Ah
11Ah
22Ah
50Ah
100Ah
200Ah
Nominal Energy
102.4Wh
140.8Wh
281.6Wh
640Wh
1280Wh
2560Wh
Charge Voltage
14.6±0.2V
Charge Cut-Off Voltage
15.6±0.2V
Nominal Charge Current
3.5A
5A
10A
25A
50A
100A
Max Discharge Current
10A
10A
20A
50A
100A
200A
Communication
Bluetooth Optional
Operating Temperature Range
Charging:0~45℃ Discharging:-20~60℃
Water Dust Resistance
IP65
Product Warranty
3 Years
Design Life Time
10+ Years
Cycle Time
3000+ Cycles
Plastic Case
ABS
Dimension (mm)
151*65*94
151*99*94
174*165*125
229*138*208
330*180*240mm
345*190*245
Weight (Kg)
0.9Kg
0.8Kg
1.3Kg
2.8Kg
14Kg
21.5Kg







Other hot sale lifepo4 rechargeable battery pack:

Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge

Dimension (mm)

with case

Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52

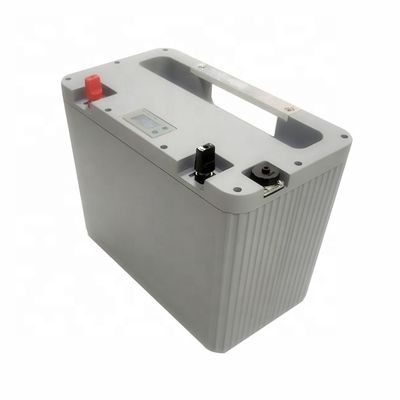

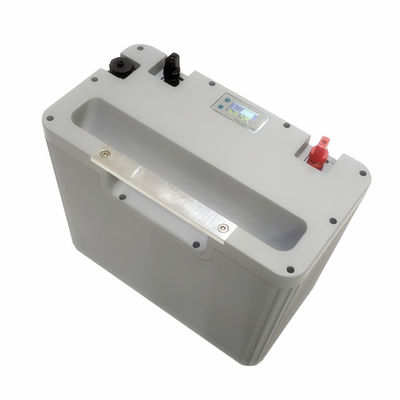

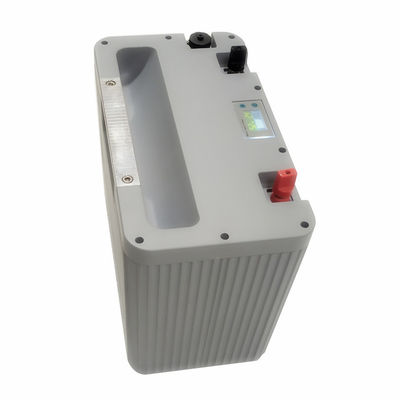

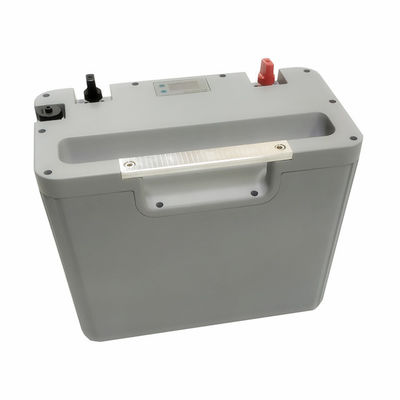

Detailed images: Golf cart/RV Battery 12V 100Ah Lifepo4 rechargeable battery pack

Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 0Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 1Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 2



FAQ:



Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.

There is wrong connection inside the battery pack.

There is abnormally of electronic components and/or PCB inside the battery pack.

There is failure in charger.

Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.



Lifepo4 rechargeable battery pack for other applications.

Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 3



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 4



Quality Control



Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 6



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Portable 12V 100AH LFP Battery Pack Solar Energy Battery For Car Camping 7
