Model Number: | LP08570 |
MOQ: | 5000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
E Cigarette 3.7V Lipo Polymer 08570 Lithium Battery Cells 300mAh
3.7V 300mah 10C 08570 electronic cigarette battery | |
Size | 8x57mm |
Rated Voltage | 3.7V |
Rated Capacity | 300mAh |
Internal Resistance | ≤100mΩ |
Net Weight | 8g |
Cut-off Discharge Voltage | 2.75V |
Charge Upper Limit Voltage | 4.2V |
Charging Time | 2hrs |
Max Discharging Current | 10C |
Cycle Life | 300 |
Standard charger | cc/cv(max ,charging rate 2A) |
Warranty | 1 years |
Operating Temperature | charge (0 ~ 45°C) |
discharge (-20 ~ 60°C) | |
Storage Temperature | within 1 month (-20~ 50°C) |
within 3 months (-20~ 40°C) | |
within 3 months (-20~ 20°C) |
Other hot-sale Li polymer battery pack , with stocks can accept mini order:
Shenzhen Gold Power Energy have complete high discharging rate lithium polymer batteries.
Capacity range from 100mAh to 2000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Cell Model | Capacity(mAh) | Voltage(V) | Size(mm) | Peak current | ||
08500 | 240 | 3.7 | 8.3 | 51 | 15C | |
08500 | 260 | 3.7 | 8.3 | 51 | 15C | |
08500 | 280 | 3.7 | 8.3 | 51 | 15C | |
08570 | 280 | 3.7 | 8.3 | 58 | 15C | |
09500 | 330 | 3.7 | 9.3 | 51 | 10C | |
10260 | 160 | 3.7 | 10.3 | 27 | 15C | |
10350 | 320 | 3.7 | 10.3 | 36 | 10C | |
10530K | 420 | 3.7 | 10.3 | 54 | 15C | |
11240 | 160 | 3.7 | 11.3 | 25 | 15C | |
12290 | 300 | 3.7 | 12.3 | 30 | 10C | |
13300 | 400 | 3.7 | 13.3 | 31 | 10C | |
15350 | 650 | 3.7 | 15.3 | 36 | 8C | |
17350 | 850 | 3.7 | 17.3 | 36 | 7C | |
401832 | 170 | 3.7 | 4.2 | 18.3 | 32.5 | 15C |
451645 | 280 | 3.7 | 4.7 | 16.3 | 45.5 | 15C |
452533 | 300 | 3.7 | 4.7 | 25.3 | 33.5 | 10C |
471540 | 250 | 3.7 | 4.9 | 15.3 | 40.5 | 15C |
501243 | 210 | 3.7 | 5.2 | 12.3 | 43.5 | 15C |
501245 | 230 | 3.7 | 5.2 | 12.3 | 45.5 | 15C |
501447 | 280 | 3.7 | 5.2 | 14.3 | 47.5 | 15C |

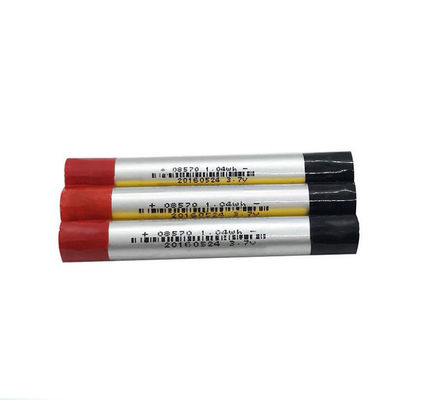

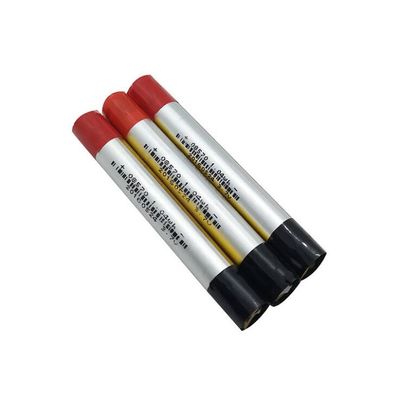

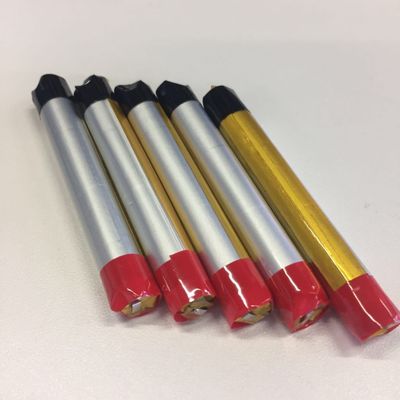

Images fo samll size 10C Lithium Polymer 08570 300mah lipo battery pack
FAQ:
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
