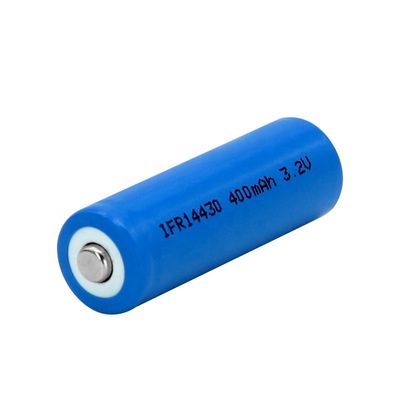

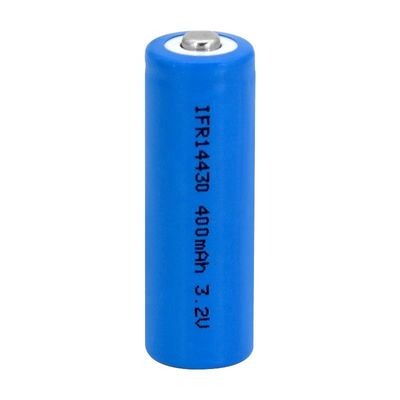

LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah

LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah
LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah

Large Image :  LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: IFR14430
Payment & Shipping Terms:
Minimum Order Quantity: 500pieces
Packaging Details: Bulk packing
Delivery Time: within 10days
Payment Terms: T/T
Supply Ability: 40'000Pieces daily

LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah

Description

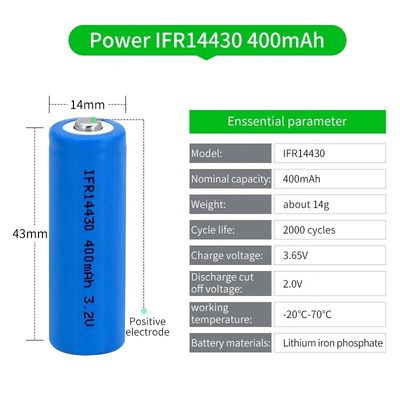

Battery Type: Lithium Iron Phosphate Battery Voltage: 3.2V
Capacity: 400mAh Cycle Life: 2000 Times
Weight: 12g Size: 14*43mm
End Of Charge: 3.65V End Of Discharge: 2V
High Light:

LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah

,

14430 lifepo4 3.2 v 400mah

,

UN38.3 lifepo4 14430

Rechargeable Lithium Batteries IFR14430 3.2V 400mAh LiFePO4 Battery Cell



No. Item General Parameter Remark
1 Rated Capacity Typical 400mAh Standard discharge(0.2C5A) after Standard charge
2 Nominal Voltage 3.2V Mean Operation Voltage
3 Voltage at end of Discharge 2.0V Discharge Cut-off Voltage
4 Charging Voltage 3.3V
5 Internal Impedance 60mΩ Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6 Standard charge Constant Current 0.2C5A
Constant Voltage 4.2V
0.01 C5A cut-off
7 Standard discharge Constant current 0.2C5A
end voltage 3.0V
8 Fast charge Constant Current 1.0C5A
Constant Voltage 4.2V
0.01 C5A cut-off
9 Fast discharge Constant current 1.0C5A
end voltage 3.0V
10 Maximum Continuous Charge Current 1.0 C5A
11 Maximum Continuous Discharge Current 4.0 C5A
12 Maximum Continuous Discharge Current 5.0 C5A
13 Operation Temperature Range Charge: 0~45°C 60±25%R.H.
Bare Cell
Discharge: -10~60°C
14 Storage Temperature Range Less than 1 year: -20~25°C 60±25%R.H.
at the shipment state
less than 3 months: -20~40°C
Less than 7 day : -20~60°C
15 Cell Dimension High: 65.0±0.5 mm Initial Dimension
Diameter:18.0±0.5 mm







Detailed Images for: lifepo4 battery cell 14430 3.2V 400mAh lithium Cylindrical battery





LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah 0LiFePO4 Size 14430 Rechargeable Solar Battery 3.2 V 400mah 1

Other hot sale rechargeable lifepo4 battery cells:

Lifepo4 Cylindrical Battery cell List
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharge Rate Weight(g) Cycle life (80% DOD)
IFR10440 3.2V 200mAh 10.3*44.2 0.2-0.5C 0.2-3C 7 ≧2000
IFR14430 3.2V 400mAh 14.2*43 0.2-0.5C 0.2-3C 13 ≧2000
IFR14500 3.2V 600mAh 14.2*50.2 0.2-0.5C 0.2-3C 18 ≧2000
IFR16340 3.2V 400mAh 16.2*34.2 0.2-0.5C 0.2-3C 13 ≧2000
IFR18500 3.2V 1000mAh 18.1*50.2 0.2-0.5C 0.2-3C 34 ≧2000
IFR18650 3.2V 1500mAh 18.5*65.3 0.2-0.5C 0.2-3C 42 ≧2000
IFR18650 3.2V 1800mAh 18.5*65.3 0.2-0.5C 0.2-3C 62 ≧2000
IFR22650 3.2V 1800mAh 22.5*65.3 0.2-0.5C 0.2-3C 64 ≧2000
IFR26650 3.2V 3400mAh 26.5*65.3 0.2-0.5C 0.2-3C 85 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR32700 3.2V 6000mAh 32.5*65.3 0.2-0.5C 0.2-3C 150 ≧2000
