| Model Number: | IFR10440 |
| MOQ: | 500pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
3.2v LiFePO4 Battery Cell 10440 AAA Rechargeable Lithium Batteries For LED Lamp
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | OEM | ||
| 2 | Model NO. | SSL-IFR10440 | ||
| 3 | Normilar Capacity | 200mAh | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 3.2 V | ||
| 5 | Discharge Voltage (Min.) | 2.0V | ||
| 6 | Charging Voltage (Max.) | 3.65V | ||
| 7 | Charging Current (std.) | 0.5 C5A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Type | LiFePO4 battery 10440 200mAh | ||
| 14 | Internal Impedance | ≤150 mΩ | ||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit |
||
| 16 | Size | 10*10*44mm | Recommend or Customize | |
| 17 | Weight | Approx. 7g | PVC/ABS package | |
| 18 | Cycle Life | 3000 times | ||
| 19 | Warranty | 12 months | ||
Detailed Images for: lifepo4 battery cell 10440 3.2V 200mAh lithium Cylindrical battery
Other hot sale rechargeable lifepo4 battery cells:
| Lifepo4 Cylindrical Battery cell List | |||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharge Rate | Weight(g) | Cycle life (80% DOD) |
| IFR10440 | 3.2V | 200mAh | 10.3*44.2 | 0.2-0.5C | 0.2-3C | 7 | ≧2000 |
| IFR14430 | 3.2V | 400mAh | 14.2*43 | 0.2-0.5C | 0.2-3C | 13 | ≧2000 |
| IFR14500 | 3.2V | 600mAh | 14.2*50.2 | 0.2-0.5C | 0.2-3C | 18 | ≧2000 |
| IFR16340 | 3.2V | 400mAh | 16.2*34.2 | 0.2-0.5C | 0.2-3C | 13 | ≧2000 |
| IFR18500 | 3.2V | 1000mAh | 18.1*50.2 | 0.2-0.5C | 0.2-3C | 34 | ≧2000 |
| IFR18650 | 3.2V | 1500mAh | 18.5*65.3 | 0.2-0.5C | 0.2-3C | 42 | ≧2000 |
| IFR18650 | 3.2V | 1800mAh | 18.5*65.3 | 0.2-0.5C | 0.2-3C | 62 | ≧2000 |
| IFR22650 | 3.2V | 1800mAh | 22.5*65.3 | 0.2-0.5C | 0.2-3C | 64 | ≧2000 |
| IFR26650 | 3.2V | 3400mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 85 | ≧2000 |
| IFR26650 | 3.2V | 3600mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 90 | ≧2000 |
| IFR26650 | 3.2V | 3600mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 90 | ≧2000 |
| IFR32700 | 3.2V | 6000mAh | 32.5*65.3 | 0.2-0.5C | 0.2-3C | 150 | ≧2000 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
| Model Number: | IFR10440 |
| MOQ: | 500pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
3.2v LiFePO4 Battery Cell 10440 AAA Rechargeable Lithium Batteries For LED Lamp
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | OEM | ||
| 2 | Model NO. | SSL-IFR10440 | ||
| 3 | Normilar Capacity | 200mAh | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 3.2 V | ||
| 5 | Discharge Voltage (Min.) | 2.0V | ||
| 6 | Charging Voltage (Max.) | 3.65V | ||
| 7 | Charging Current (std.) | 0.5 C5A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Type | LiFePO4 battery 10440 200mAh | ||
| 14 | Internal Impedance | ≤150 mΩ | ||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit |
||
| 16 | Size | 10*10*44mm | Recommend or Customize | |
| 17 | Weight | Approx. 7g | PVC/ABS package | |
| 18 | Cycle Life | 3000 times | ||
| 19 | Warranty | 12 months | ||

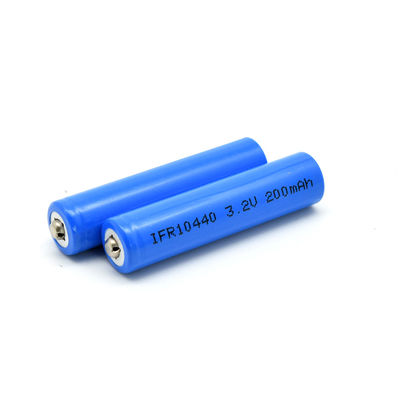

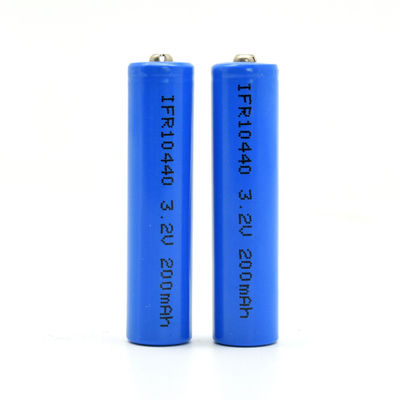

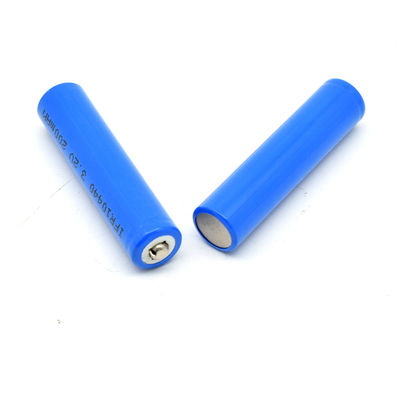

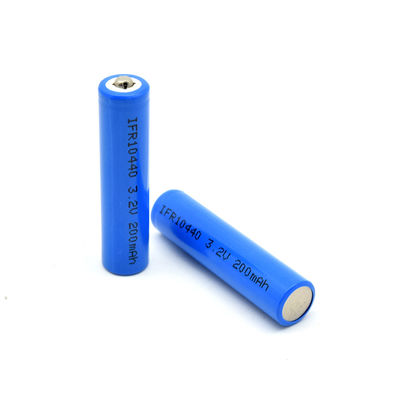

Detailed Images for: lifepo4 battery cell 10440 3.2V 200mAh lithium Cylindrical battery
