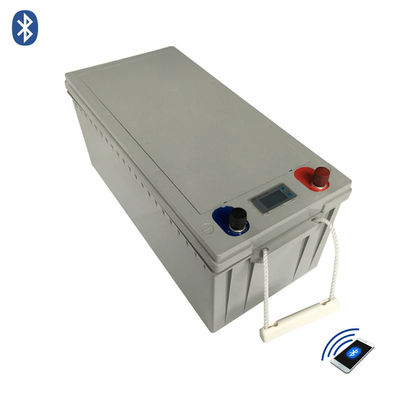

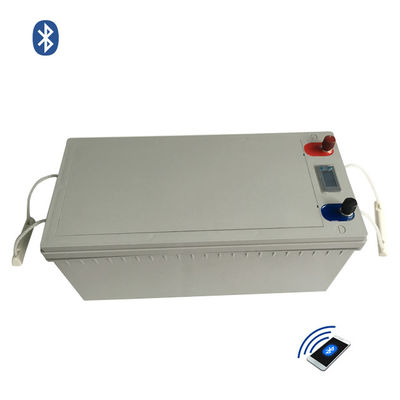

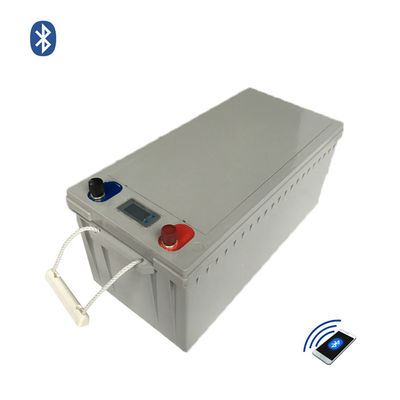

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS
Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS

Large Image :  Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, RoHS
Model Number: LFP12V200
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Packaging Details: Carton box
Delivery Time: within 20days
Payment Terms: T/T
Supply Ability: 5000Pieces daily

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS

Description
Battery Type: LiFePO4 Battery Pack Voltage: 12V
Capacity: 200Ah Cycle Life: 2000 Times
Application: Solar Light Batteries, Power Supply, E-boat Weight: 27kg
Size: Customize Warranty: 3 Years
High Light:

200A BMS LiFePO4 12V

,

LiFePO4 Battery Pack With BMS

,

LiFePO4 Golf Cart battery

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS



ITEM
Specification
Nominal Capacity
200AH
Rated voltage
12V
Energy density (Wh/kg)
85
Internal Resistance
15mΩ
Charge (CC-CV)
1C
Charge (float)
3C
Max. charging current
20AH
Standard. charging voltage
14.6V
Recommended charging current
0.5C
Max. continuous discharging current
1C
Max.pulse discharging current(30seconds)
3C
Recommended discharging current
200AH
Max. End-off discharged voltage
10V
Self discharge rate (monthly)
3%
Dimension
Accept customized
Weight (Approx.)
27kg
Working temperature
Charging
0℃-35℃

Discharging
-20℃-45℃
Storage temperature
In one month
0℃-25℃

In six months
0℃-35℃



Advantages of Lithium Iron phosphate battery pack:

1) High storage capacity

2)Good charge acceptance, can be high current charge (0.8C-1C)

3)Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.

4)Can be super-deep discharge and repeated to make discharge, battery will not undermine.

5)Well adapt to the temperature, can be used within -50~60°C.

6)Long design service life, double the life of lead acid batteries.

7)Environmental protection; It is easy to recycle and no pollution.



FAQ for Lifepo4 solar light battery:

Q1. Can we put different LiFePO4 battery pack in parallel or series by ourself?

A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:

1. Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.

2. Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.

3. Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery. 4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q2. Does your battery pack include BMS? Can we use it for car?

A2: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car.

Do not use it for standard car directly, that will need more complex design BMS for the pack.



Solar energy storage battery 12V 200Ah rechargeable Lifepo4 battery pack

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 0Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 1



Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:

Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge Dimension (mm) with case Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52



Lifepo4 rechargeable battery packs for other applications.

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 2



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 3



Quality Control



Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 5



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Remote Monitoring Golf Cart 12V 200A LiFePO4 Battery Pack With BMS 6
