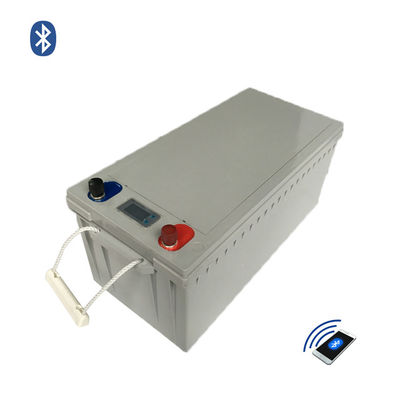

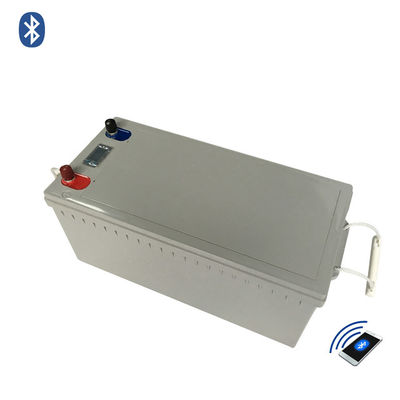

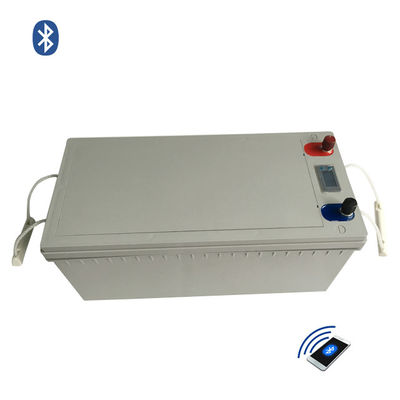

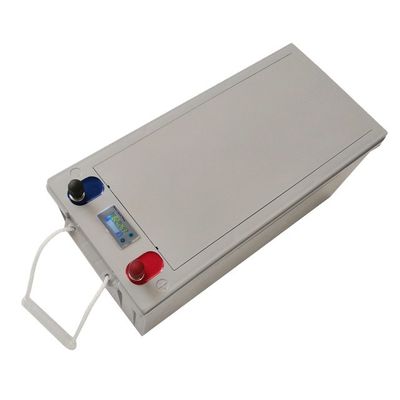

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth
Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth

Large Image :  Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, RoHS
Model Number: LFP12V200
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Packaging Details: Carton box
Delivery Time: within 20days
Payment Terms: T/T
Supply Ability: 5000Pieces daily

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth

Description
Battery Type: LiFePO4 Battery Pack Voltage: 12V
Capacity: 200Ah Cycle Life: 2000 Times
Application: Solar Light Batteries, Power Supply, E-boat Weight: 27kg
Size: Customize Warranty: 3 Years
High Light:

lithium iron phosphate battery solar

,

12v 200Ah solar Battery

,

200 amp hour solar battery

12v 200Ah Lithium Iron Phosphate Solar Energy Storage Battery With Bluetooth



Electrical
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
200Ah@0.2C
Energy
2560Wh
Internal Resistance
≤35mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V
Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
Charging Current
20A
Max.Charging Current
50A
Standard Discharging
Discharging Current
100A
Max. Continuous Current
150A
Max.Pulse Current
200A(<3S)
Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
Lifepo4 pouch cell
Casing
Plastic
Dimension(L*W*H*TH)
522*238*217
Weight
Approx. 27Kg
Terminal
M8




Advantages of Lithium Iron phosphate battery pack:

1) High storage capacity

2)Good charge acceptance, can be high current charge (0.8C-1C)

3)Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.

4)Can be super-deep discharge and repeated to make discharge, battery will not undermine.

5)Well adapt to the temperature, can be used within -50~60°C.

6)Long design service life, double the life of lead acid batteries.

7)Environmental protection; It is easy to recycle and no pollution.



FAQ for Lifepo4 solar light battery:

Q1. Can we put different LiFePO4 battery pack in parallel or series by ourself?

A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:

1. Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.

2. Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.

3. Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery. 4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q2. Does your battery pack include BMS? Can we use it for car?

A2: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car.

Do not use it for standard car directly, that will need more complex design BMS for the pack.



Solar energy storage battery 12V 200Ah rechargeable Lifepo4 battery pack

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 0Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 1



Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:

Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge Dimension (mm) with case Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52



Lifepo4 rechargeable battery packs for other applications.

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 2



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 3



Quality Control



Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 5



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth 6
