ICR18650 3S12P Rechargeable 12V 30Ah Lithium Ion Battery Pack with 11.1V Nominal Voltage and 500 Cycle Life

Model Number:	ICR18650-3S12P
MOQ:	200pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, IEC62133, RoHS

Nominal Voltage:

11.1V

Nominal Capacity:

Cycle Life:

500times

Discharging Rate:

Operating Temperature:

-20 °C To 60 °C

Charge Temperature:

0 °C To 45 °C

Supply Ability:

3'000Pieces daily

Highlight:

ICR18650 3S12P Rechargeable 12V

Rechargeable 12V ICR18650 3S12P

ICR18650 3S12P 30ah battery

Product Description

ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair

Product Overview

Rechargeable 12V Battery Pack 12V 30ah Power Tools Electric Wheelchairs Battery

Technical Specifications

Model	11.1V lithium ion battery
Product Type	Lithium ion batteries
Nominal voltage	11.1V
Capacity	30Ah
Input	12.6V
Dimension	Custom
Output	12.6-10.8V
Max continuous discharge current	1C (Adjustable)
Battery cells	A grade battery cells
PCM	12V A grade PCM, over-charge/discharge protection, over-heat protection, short circuit protection
LED Indicator	Customize
ON/OFF Switch	Customize
Connectors	5.52.1mm DC jack+5.52.1mm DC plug (can be customize)
Recharge cycle	More than 500 times
Battery Charger	12.6V US/EU/UK plug
Charging full time	Around 5 hours
Operating temperature	-20 °C to 60 °C
Charge temperature	-0 °C to 45 °C
Storage temperature	-20 °C to 45 °C
Operating humidity	5% to 90%, non-condensing

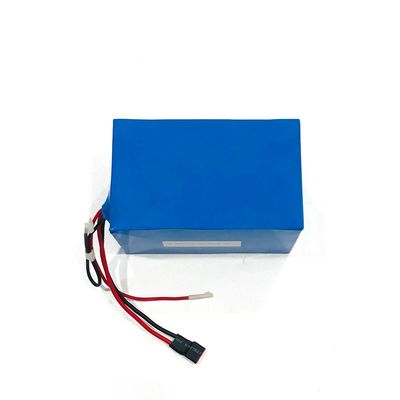

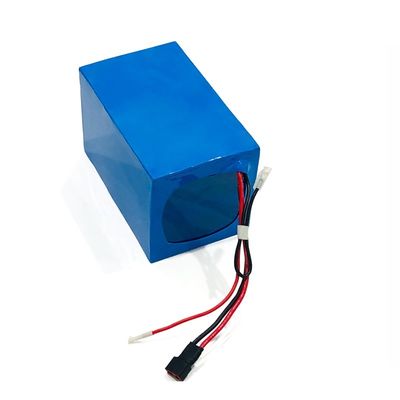

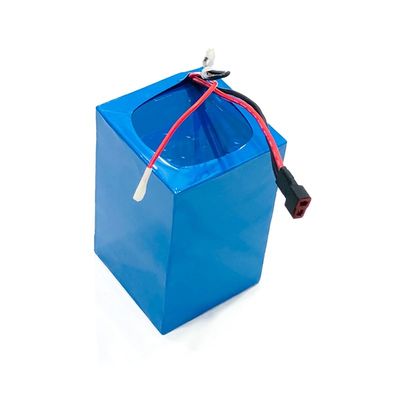

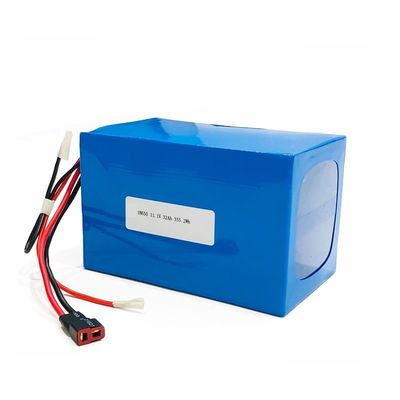

Product Images

Frequently Asked Questions

Can I use Lithium batteries mixing with other battery types?

If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.

What will happen if the batteries with different capacity are packed together?

If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.

What are the possible reasons for zero voltage or low voltage of the battery pack?

Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.

What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

The battery is zero voltage or there is battery with zero voltage in the battery pack. There is wrong connection inside the battery pack. There is abnormally of electronic components and/or PCB inside the battery pack. There is failure in charger. Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.

Customized Battery Solutions

Why Choose Us

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applied
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

Research & Development

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Quality Control

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
