| Model Number: | IFR32700-8S1P |
| MOQ: | 200pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |

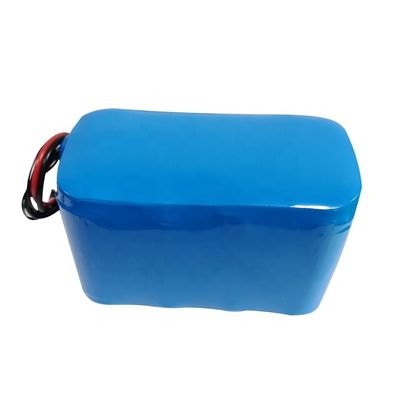

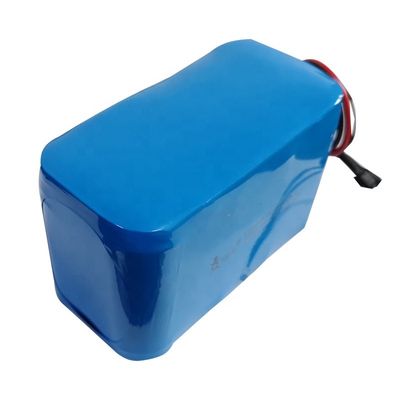

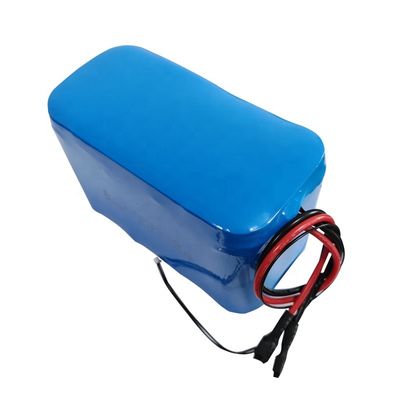

Custom Solar Light Batteries 32700 32650 8s 6Ah 24v Lifepo4 Battery Pack
| ITEM | SPECIFICATION | REMARK |
| Nominal Voltage | 25.6V | |
| Nominal Capacity | 6Ah | Standard discharge at 0.2C |
| Standard Discharge Current | 0.2C (1.2A) | |
| Max Discharge Current | 12A | |
| Peak Current | 15A | last time≤1s |
| Charge Voltage | 28.8V | |
| Standard Charge Current | 0.2C (1.2A) | Charge time : Approx 7.0h |
| Fast Charge Current | 0.5C(3A) | Charge time : Approx 3.0h |
| Inner Resistance | ≤105mΩ | AC 1KHZ after 50% charge |
| Cycle life | ≥2000 times until 70% capacity | |
| Ref. Discharge Cut off Voltage | 16.0V | |
| Charge Temperature Range | 0°C to 45°C | |
| Discharge Temperature Range | -20°C to 60°C | |
| Recommended Storage Temperature | 23 ± 5°C | |
| Weight | Approx.1215g | |
| Battery Cell Model | 32700 | |
| Configuration | 8S1P | |
| Size | L*W*H=129*64*79mm | With PCM |
| Connector/Terminal | 4.8mm spring terminal for discharge, MX1.25 2P for NTC | Customized |
| Battery PCM function | Over charge/discharge,over current, short circuit and temperature protection |
Advantages of Lifepo4 solar light battery:
1) High storage capacity
2)Good charge acceptance, can be high current charge (0.8C-1C)
3)Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.
4)Can be super-deep discharge and repeated to make discharge, battery will not undermine.
5)Well adapt to the temperature, can be used within -50~60°C.
6)Long design service life, double the life of lead acid batteries.
7)Environmental protection; It is easy to recycle and no pollution.
Other hot sale lifepo4 rechargeable battery pack:
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
