| Model Number: | LFP12V80 |
| MOQ: | 5pieces |
| Packaging Details: | Carton box or wooden box |
| Payment Terms: | T/T |

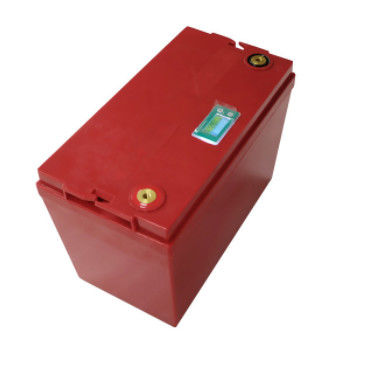

Long Cycle Life LFP 12V 80Ah Lifepo4 Battery Pack 12v Solar Light Batteries
|
Electrical Characteristics |
Nominal Voltage | 12.8v |
| Nominal Capacity | 80Ah @ 0.2C | |
| Energy | 1024Wh | |
| Internal resistance | ≤50mΩ | |
| Cycle Life | >2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity | |
| Months Self discharge | ≤3.5% per month at 25℃ | |
|
Standard Charge |
Charge voltage | 14.6±0.2V |
|
Charge Mode( CC/CV) |
At 0℃~45℃ temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A | |
| Charge current | 20A | |
| Max.Charge current | 30A | |
|
Standard Discharge |
Discharge current | 80A |
| Max.continuous current | 100A | |
| Max. Pulse current | 150A (<3S) | |
| Discharge cut-off voltage | 10.0V | |
|
Environmental |
Charge Temperature | 0℃ to 45 ℃ |
| Discharge Temperature | -20℃ to 60 ℃ | |
| Storage Temperature | 0℃ to 45 ℃ | |
| Water Dust Resistance | IP55 | |
|
Mechanical |
Cell & Method | 3.2V 100Ah |
| Plastic Case | ABS | |
| Dimension (L*W*H*TH) | 330*175*220mm | |
| Weight | Approx. 11KG | |
| Terminal | M8 |
Lifepo4 battery pack advantages:
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

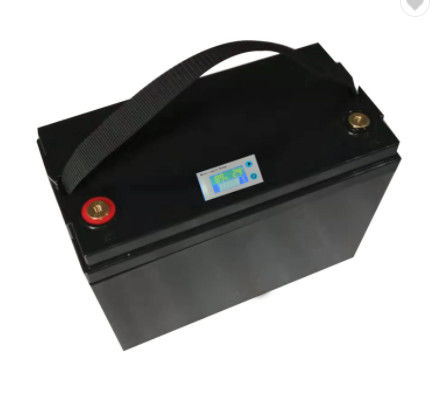

Details imgines for Lifepo4 battery pack 12 Volt 150Ah Storage battery for solar systme
Other hot sale solar energy storage batteries:
| Solar Storage Battery | |||||
| Voltage | Typical Capacity | Charge | Discharge | Dimension(mm) | Weight(Kg) |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 4.5 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |

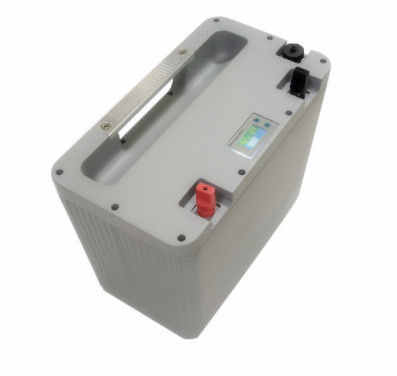

Other hot sale lifepo4 rechargeable battery packs:
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
