RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack
RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack

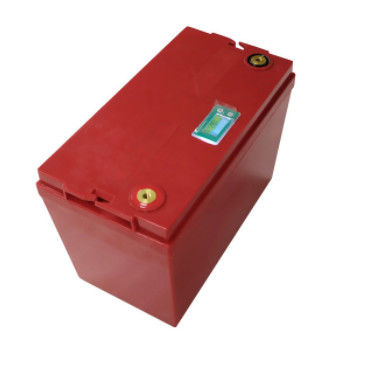

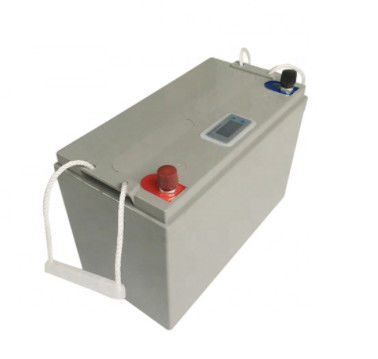

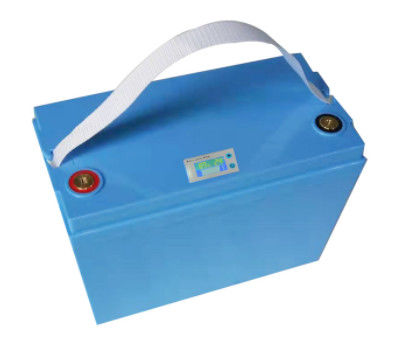

Large Image :  RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, RoHS
Model Number: LFP12V100
Payment & Shipping Terms:
Minimum Order Quantity: 5pieces
Packaging Details: Carton box or wooden box
Delivery Time: within 20days
Payment Terms: T/T
Supply Ability: 50Pieces daily

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack

Description
Battery Type: LiFePO4 Battery Pack Voltage: 12V
Capacity: 100Ah Cycle Life: 2000 Times
Size: 330*175*220mm Weight: 13.8kg
Usage: UPS, Solar System, Telecom, EPS, EV/CAR/MOTORCYCLE/UPS/ENERGY STORAGE Color: Grey, Black, Red, Blue &White Shell Or Customized
High Light:

RoHS 100Ah Lifepo4 12v

,

UN38.3 12v Li Ion Battery Pack

,

100ah 12v lifepo4 deep cycle battery

Long Cycle Life 12V 100Ah Lifepo4 Battery Pack 12v Li Ion Battery Pack









Electrical Characteristics

Nominal Voltage 12.8v
Nominal Capacity 100Ah @ 0.2C
Energy 1280Wh
Internal resistance ≤50mΩ
Cycle Life >2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity
Months Self discharge ≤3.5% per month at 25℃





Standard Charge

Charge voltage 14.6±0.2V





Charge Mode( CC/CV)

At 0℃~45℃ temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A
Charge current 20A
Max.Charge current 30A





Standard Discharge

Discharge current 100A
Max.continuous current 150A
Max. Pulse current 200A (<3S)
Discharge cut-off voltage 10.0V





Environmental

Charge Temperature 0℃ to 45 ℃
Discharge Temperature -20℃ to 60 ℃
Storage Temperature 0℃ to 45 ℃
Water Dust Resistance IP55





Mechanical

Cell & Method 3.2V 100Ah
Plastic Case ABS
Dimension (L*W*H*TH) 330*175*220mm
Weight Approx. 13.8KG
Terminal M8



Details images for  Lifepo4 battery pack 12 Volt 150Ah Storage battery for solar systme

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 0RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 1RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 2RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 3



Other hot sale solar energy storage batteries:

Solar Storage Battery
Voltage Typical Capacity Charge Discharge Dimension(mm) Weight(Kg)
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 4.5
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52



Other hot sale lifepo4 rechargeable battery packs:

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 4

Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 5



Quality Control



RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 7



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

RoHS UN38.3 Long Cycle Life 100Ah Lifepo4 12v Li Ion Battery Pack 8
