| Model Number: | LFP12V100 |
| MOQ: | 5pieces |
| Packaging Details: | Carton box or wooden box |
| Payment Terms: | T/T |
12V 100Ah Solar Energy Storage Batteries 12 volt lithium iron Phosphate battery
| 12v 100Ah solar energy storage battery pack | |||
| Electric Characteristics | |||
| Nominal Voltage: | 12.8V | Energy: | 1280Wh |
| Rated Capacity: | 100Ah | Specifi Energy: | 102.4Wh/kg |
| Internal Resistance: | ≤50mΩ | Cycle Life: | 2000+ |
| Charging and Discharging Parameters | |||
| Charge cut-off volt: | 14.6V | Discharge cut-off volt: | 10V |
| Maximum Charge current: | 100A | Maximum Discharge current: | 100A |
| Peak Discharge current: | 200A | Suggested charge Volt: | 14.6V |
| Operation Temperature Parameters | Storage Temperature Parameters | ||
| Charge: | 0~45℃ | Less than a year: | 0~25℃ |
| Discharge: | -20~60℃ | Less than three months: | -10~35℃ |
| Recommended: | 18~28℃ | ||
| Mechanical Properties | |||
| Dimension Length: | 330mm(12.99 inch) | Housing materials: | ABS |
| Dimension Width: | 175mm(6.89 inch) | Terminal size: | M8 |
| Dimension Heigth: | 220mm(8.66 inch) | Cell model: | 3.2v 100ah |
| Weight: | 13kg(33.1 lbs) | Configuration: | 4S1P |
|
BMS function: |
|||
| Protect battery from Overcharge, Overdischarge, Overcurrent, Short circuit | |||
| Advantage: | |||
| High safety(no fire,no explosion) | Light weight | High energy density | Long lifespan |
| Environmentally friendly | Waterproof | No memory effect | Easy maintenance |

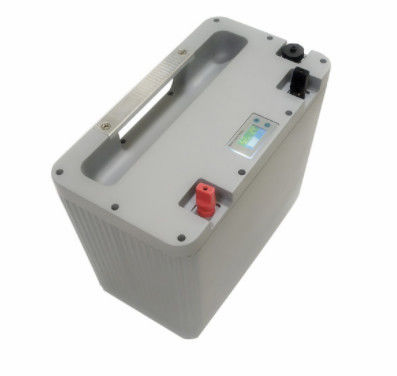

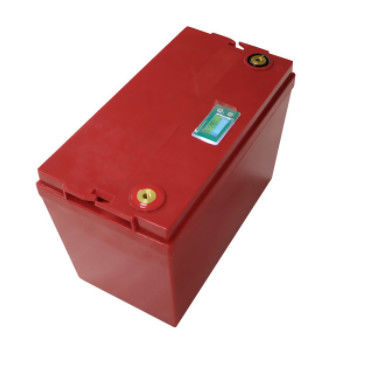

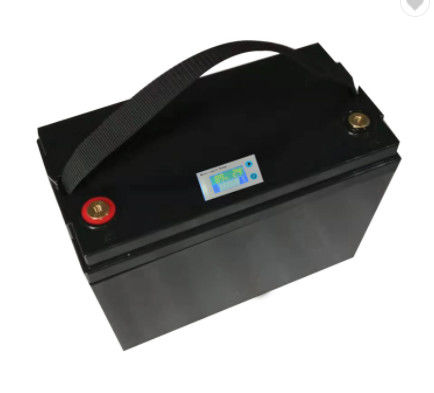

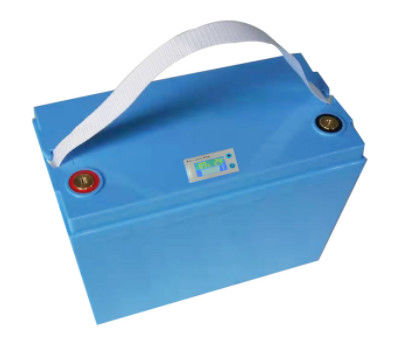

Details images for Lifepo4 battery pack 12 Volt 150Ah Storage battery for solar systme
Other hot sale solar energy storage batteries:
| Solar Storage Battery | |||||
| Voltage | Typical Capacity | Charge | Discharge | Dimension(mm) | Weight(Kg) |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 4.5 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Other hot sale lifepo4 rechargeable battery packs:
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
