IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter

IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter

Model Number: ICR18650-3S8P
MOQ: 200pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, IEC62133, RoHS
Battery Type:
Lithium Ion Battery Pack
Model:
ICR18650 3S8P
Nominal Voltage:
11.1V
Nominal Capacity:
20Ah
Cycle Life:
500times
Discharging Rate:
1C
Anode Material:
Lithium Cobaltate
Application:
Electronic Scooter, E-bike, Power Tool
Lead Time:
15days
Battery Warranty:
1year
Supply Ability:
3'000Pieces daily
High Light:

IEC62133 12V 20Ah 3S 18650 Battery Pack

,

IEC62133 12V 20Ah 18650

,

IEC62133 12V 20Ah 3S battery Pack

Product Description

Custom Rechargeable Lithium Batteries 18650 3S Li Ion Battery 12V 20Ah

Voltage
12V
Capacity
20Ah
Battery Type
Li-Ion Battery pack
Composed Type
3Series And 8Parallel
Certification
CE,ROHS,FCC,IEC,UN38.3,MSDS
Max continuous Charge/discharge current
5A (Adjustable)
Charger Included 2A charger
US plug/EU plug/UK plug
Protection
12VPCM,over-charge/discharge protection, over-heat protection
Recharge cycle
More than 500 times
LED Indicator
Available
ON/OFF Switch
Available
Operating temperature
-20 °C to 60 °C
Charge temperature
-0 °C to 45 °C
Storage temperature
-20 °C to 45 °C
Operating humidity
5% to 90%,non-condensing

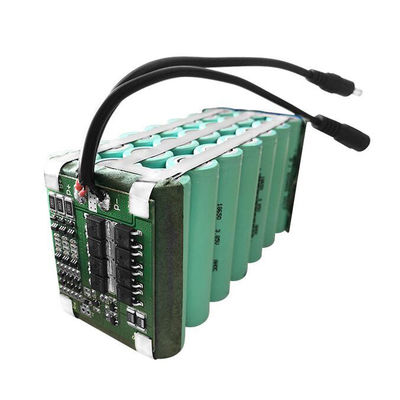

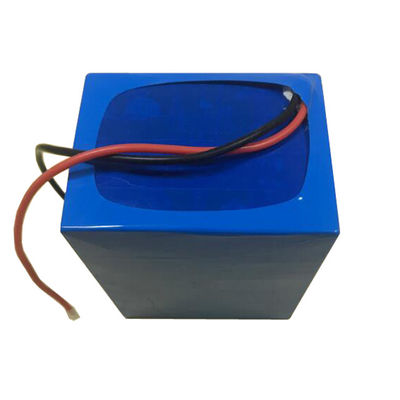

Detailed images for 24V 30Ah lithium battery pack ICR18650 li on rechargeable batteries



IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 0IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 1IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 2



IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 3



FAQ:



Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.

There is wrong connection inside the battery pack.

There is abnormally of electronic components and/or PCB inside the battery pack.

There is failure in charger.

Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.

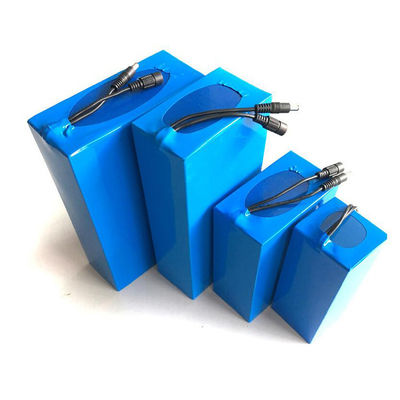

Customized lithium rechargeable battery packs



IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 4



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 5



Quality Control



IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 7



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

IEC62133 12V 20Ah 3S 18650 Battery Pack For Electronic Scooter 8
