Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval

Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval
Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval

Large Image :  Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: ICR18650-3S8P
Payment & Shipping Terms:
Minimum Order Quantity: 200pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 3'000Pieces daily

Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval

Description
Battery Type: Lithium Ion Battery Pack Model: ICR18650 3S8P
Nominal Voltage: 11.1V Nominal Capacity: 20Ah
Cycle Life: 500times Discharging Rate: 1C
Anode Material: Lithium Cobaltate Application: Electronic Scooter, E-bike, Power Tool
Lead Time: 15days Battery Warranty: 1year
High Light:

3S 20Ah Portable 12V Battery Pack

,

Li Ion 3s 18650 battery pack

,

IEC62133 3s 18650 battery pack

Li Ion 18650 Battery 3S 20Ah 11.1V Portable 12V Battery Pack Lithium Ion Battery

SPECIFICATIONS
No. Item Specifications
1 Item Name 12V 20Ah lithium ion battery pack
2 Model Number 18650-3S8P
3 Nominal Voltage 11.1V
4 Nominal Capacity 20Ah
5 Overcharge Protection Voltage 12.6V
6 Overdischarge Protection Voltage 9.0V
7 Maximum Charge Current ≤20A
8 Continuous Discharge Current ≤20A
9 Pulse Discharge Current ≤20A
10 Internal Resistance ≤160mΩ
11 Load Capacity ≤240W
12 Service Cycle Life ≥500 times
13 Charge Temperature 0℃~45℃
14 Discharge Temperature –20℃~60℃
15 Storage Temperature –20℃~35℃
16 Protectiion Temperature 70℃±5
17 Weight (g) ≈1250g
18 Dimension (mm) 115*80*70mm
19 Packing Highland barley paper+PVC
20 Characteristic High capacity,light, long life, long working time, safe, environment - friendly
21 Application Wireless monitoring equipment, communication equipment, medical equipment, instruments and meters, LED lamps and lanterns, traffic signs, portable small household appliances, power tools, toys, etc..



12V 24V 36V 48V 72V lithium ion rechargeable battery pack main applications:



E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.

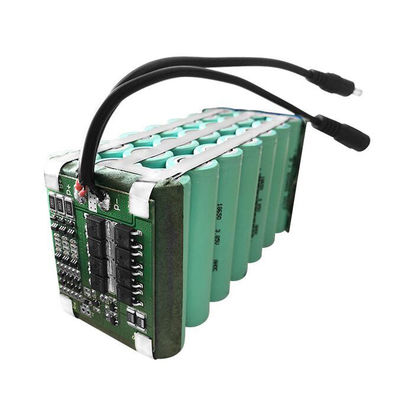

Detailed images for 24V 30Ah lithium battery pack ICR18650 li on rechargeable batteries



Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 0Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 1Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 2



Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 3

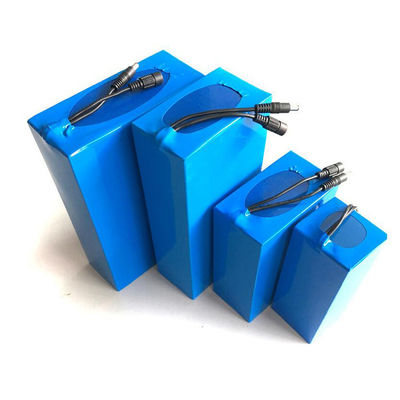

Customized lithium rechargeable battery packs



Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 4

Cautions and Warnings for Using Lithium ion Battery

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 5



Quality Control



Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 7



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Li Ion 18650 3S 20Ah Portable 12V Battery Pack IEC62133 Approval 8
