| Model Number: | LFP12V7 |
| MOQ: | 200pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |

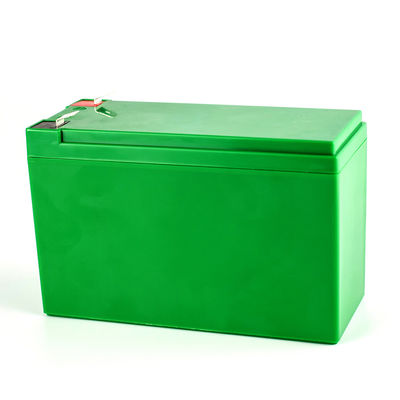

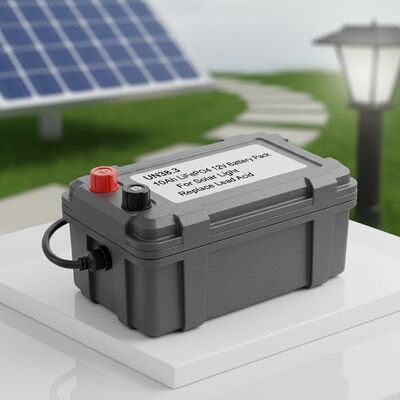

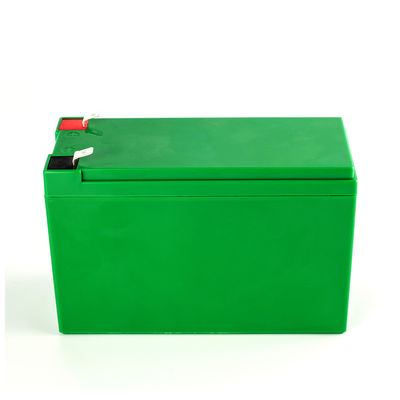

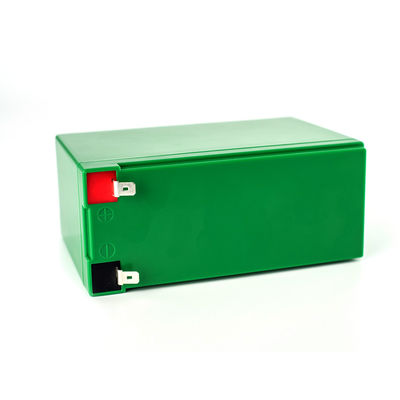

12 Volt 10Ah Lifepo4 Rechargeable 12V Battery pack For Solar Light Replace Lead Acid
| Nominal voltage | 12.8V |
| Charge voltage | 14.6V |
| Nominal capacity | 10Ah |
| Battery configation | 4S3P |
| Standard charge current | 2A |
| Max charge current | 5A |
| Standard discharge current | 10A |
| Max discharge current | 20A |
| Discharge cut off voltage | 8V |
| Case color | black or green |
| Net weight | 1.2KG |
| Case dimension | 150*65*90mm |
| Charge method | CC/CV |
| BMS protection | over-charge,over-discharge,over-current,short circuit |
| Lifecycle | 2000 times |
| Warranty | 2 years |
| Charge tepmerature | 0-45℃ |
| Discharge temperature | -10-60℃ |
Detailed images for : 12V battery pack Lifepo4 Rechargeable Battery
Advantages of 12V battery pack Lifepo4 solar light battery:
Other hot sale lifepo4 rechargeable 12V 24V 48V battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
FAQ for lithium rechargeable battery:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
