Model Number: | LP308090 |
MOQ: | 2000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
Rechargeable Lithium Batteries Li Polymer 308090 3.7v 3000mah Battery Wire Connector PCM NTC
Item | Rating | Note | ||
3.1 Capacity | Typical | 3000mAh |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
|
Minimum | 3000mAh | |||
3.2 Nominal Voltage | Average 3.7V |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
||
3.3 AC Impedance Resistance | ≤100mΩ | |||
3.4 Discharge Cut-off Voltage | 3.00V | |||
3.5 Charge Current | 600mA | Standard Charge | ||
3.6 Charge Voltage | 4.2V | |||
3.7 Max. Charge Voltage | 4.23V | |||
3.8 Storage humidity | < 75%RH | Hygrometer | ||
3.9 Max. Charge Current | 3000mA | 1.0CmA | ||
3.10 Max. Discharge Current | 3000mA | 1.0 CmA | ||
3.11 Weight | Approx 58g | |||
3.12 Operating Temperature |
Charge | 0~+45°C | ||
Discharge | -20~+60°C | |||
3.13 Storage Temperature |
less than 1 month | -20~+65°C |
Recommended storage temperature: 20°C,at the shipment state |
Other hot-sale Li polymer battery pack , with stocks can accept mini order:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Model | Cell Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

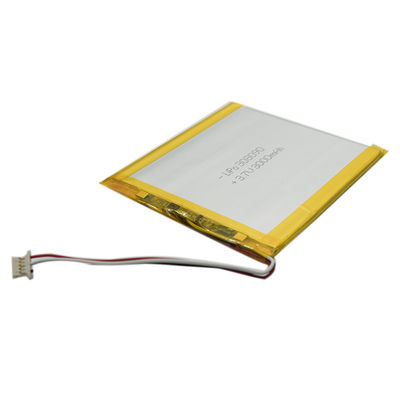

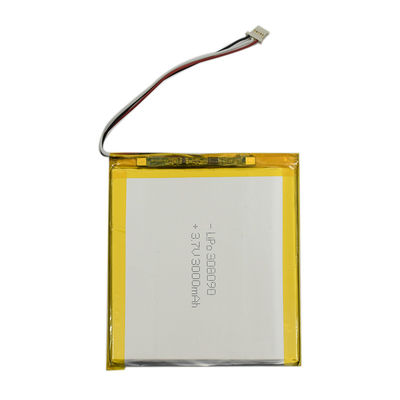

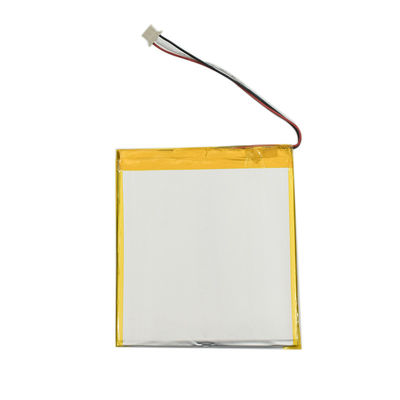

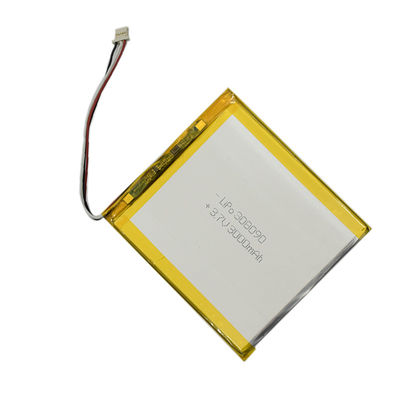

Images for Lithium ion Polymer 308090 3000mah 3.7v li polymer Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Lithium polymer battery lipo rechargeable battery features:
1.Long life cycle, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in start-up and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
Cautions and Warnings for Using Lithium Battery
1. Don’t immerse the battery in water.
2. Don’t use and leave the battery near a heat source such as fire or heater.
3. When charging, use a battery charger specifically for that purpose.
4. Don’t reverse the positive and negative terminals.
5. Don’t connect the battery to an electrical outlet directly.
6. Don’t discard the battery in fire or heater.
7. Don’t connect the positive and negative terminal directly with metal objects.
8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.
9. Don’t strike, throw or trample the battery.
10. Don’t pierce the battery with a nail or other sharp object.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
