| Model Number: | LP703048 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
MSDS 703048 3.7v Lithium Polymer Battery 1000mah
| Items | Parameter | |
| Battery model | 703048 3.7V 1000mAH lipo battery pack | |
| Nominal voltage | 3.7V | |
| Minimum capacity | 110mAh(0.2C discharge) | |
| Charging voltage | 4.25V | |
| Discharging cut-off voltage | 3.0V | |
| Standard charging | 0.2C /4.25V | |
| Max charging | 1.0C /4.25V | |
| Standard discharging | 0.2C/3.0V | |
| Max discharging | continuous discharge | 1.0C/3.0V |
| non-continuous discharge | 2.0C/3.0V | |
| Shipment voltage | ≥3.80V | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) |
-10℃~25℃ | (12 months ≥85% ) |
| -10℃ ~45℃ | (6 months ≥85% ) | |
| -10℃~55℃ | (1 month ≥90% ) | |
| 20±5℃ is the recommended storage temperature | ||
| Reference standard | GB/T 18287-2013,IEC62133, UL1642 | |
Other hot-sale Li polymer battery pack models, with stocks can accept mini order:
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera

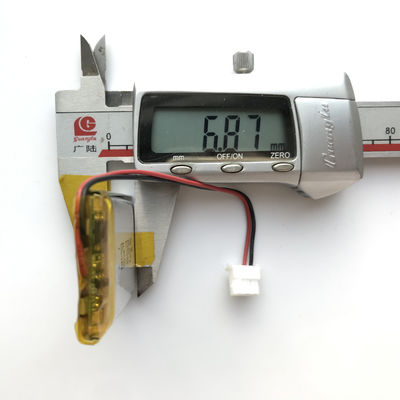

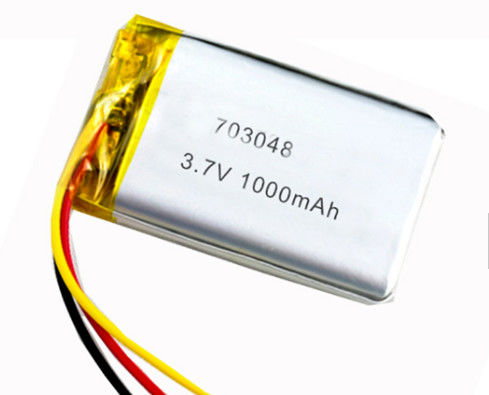

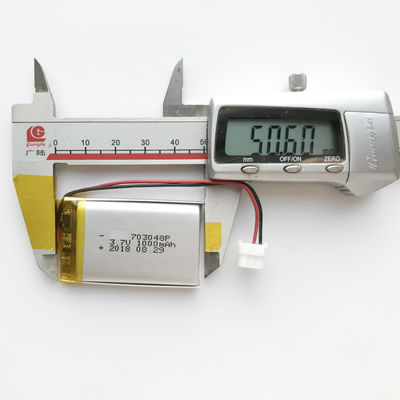

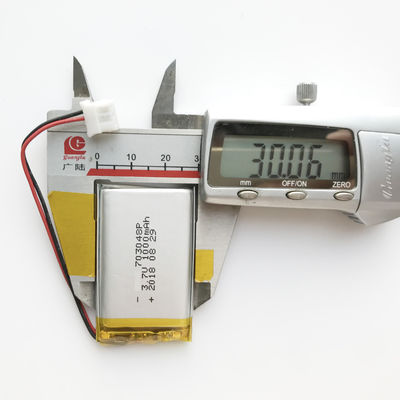

Detailed images:Li Polymer 703048 1000mah 3.7v lipo Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ for lithium rechargeable battery:
Q: Can I use Lithium batteries mixing with other battery types?
Q: What will happen if the batteries with different capacity are packed together?
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
