Model Number: | LP654060 |
MOQ: | 3000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
Rechargeable Lithium Batteries 2000mAh 654060 3.7v Lipo Battery For Bluetooth Speaker
No. | Item | Specifications |
1 | Model | 654060 li-polymer battery pack |
Size | 6.5*40*62.5mm (thickness*width*length) | |
3 | Charge voltage | 4.2V |
4 | Nominal voltage | 3.7V |
5 | Nominal capacity | 2000mAh |
6 | Charge current | Standard Charging:0.5C Rapid charge:1.0C |
7 | Standard Charging method | 0.5C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C |
8 | Charging time | Standard Charging:3.0hours(Ref.) Rapid charge:2hours(Ref.) |
9 | Max.charge current | 1C |
10 | Max.discharge current | constant current1C ,transient peak current 2C |
11 | Discharge cut-off voltage | 2.7V or 3.0V |
12 | Operating temperature | -20℃ to 60℃ |
13 | Storage temperature | 25℃ |
Other hot-sale Li polymer battery pack models, with stocks can accept mini order:
Model | Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

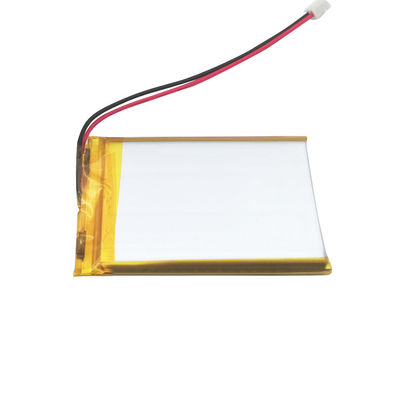

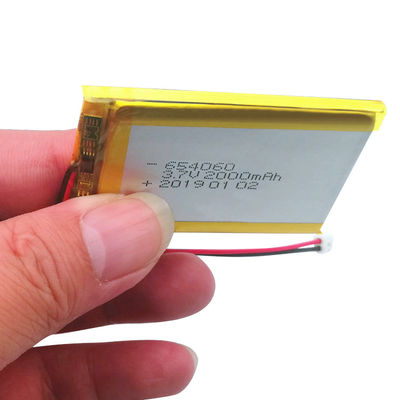

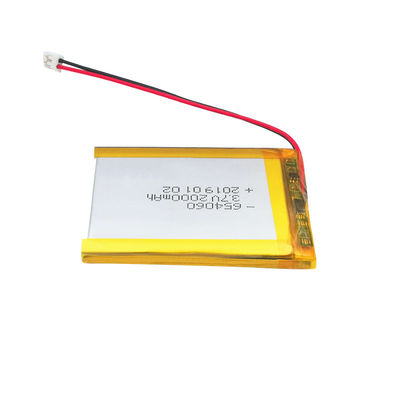

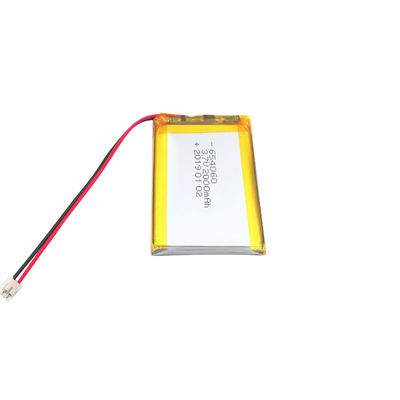

Detailed images Li Polymer 654060 2000mah 3.7v lipo Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ for lithium rechargeable battery:
Q: Can I use Lithium batteries mixing with other battery types?
Q: What will happen if the batteries with different capacity are packed together?
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
