KC IEC62133 Lithium Polymer Battery Pack

KC IEC62133 Lithium Polymer Battery Pack
KC IEC62133 Lithium Polymer Battery Pack KC IEC62133 Lithium Polymer Battery Pack KC IEC62133 Lithium Polymer Battery Pack KC IEC62133 Lithium Polymer Battery Pack

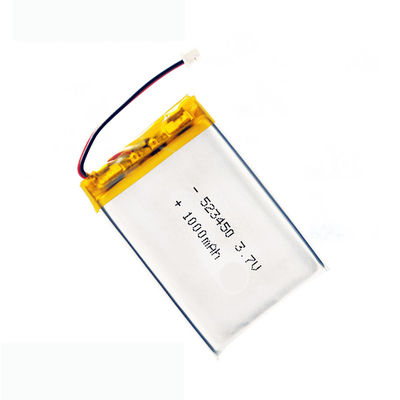

Large Image :  KC IEC62133 Lithium Polymer Battery Pack

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: LP523450
Payment & Shipping Terms:
Minimum Order Quantity: 3000pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 30'000Pieces daily

KC IEC62133 Lithium Polymer Battery Pack

Description
Battery Type: Lithium Polymer Battery Pack Voltage: 3.7V
Capacity: 1000mAh Cycle Life: 500times
Size: 5.2*34*52.5mm Weight: 21g
MOQ: 3000pcs Warranty: 1 Year
Lead Time: 15-20days
High Light:

KC IEC62133 Lithium Polymer Battery Pack

,

1000mah lipo battery 3.7 v

,

lipo 3.7 v 1000mah battery

KC IEC62133 Lithium Polymer Battery Pack 1000mah 3.7V Lipo Battery For Temperature Recorder



Items Specifications
Type 3.7V 1000mAh 523450 lipo battery
Nominal voltage 3.7V
Nominal Capacity 1000mAh
Dimension 5.2*34*50mm or Customized
Weight Approx: 20g
Max.charge current 1.0C
Max.discharge current 0.5C or according to customer requirement
Charge current

Standard Charging: 0.5C

Rapid charge: 1.0C

Standard Charging method CC-CV(constant voltage with limited current)
Charging time 0.2C: 5-6 hours; 0.5C: 2-3 hours; Max 1C: 1-2 hours
Cycle life 500-1000 times according to customer use method
Operating temperature

Charging: 0 °C ~+45 °C

Discharging: -20 °C ~+60 °C

Storage temperature -20°C~+60 °C



Li polymer battery pack widely used in:

GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone



Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor



Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera



Other hot-sale Li polymer battery pack models:



Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.



Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.



Following are some of hot-sale models for your reference.



Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh





Detailed images Li Polymer 502030 250mah 3.7v Rechargeable pack

KC IEC62133 Lithium Polymer Battery Pack 0KC IEC62133 Lithium Polymer Battery Pack 1



Standard packaging for 3.7V lithium polymer battery pack



KC IEC62133 Lithium Polymer Battery Pack 2



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

KC IEC62133 Lithium Polymer Battery Pack 3



Quality Control



KC IEC62133 Lithium Polymer Battery Pack 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

KC IEC62133 Lithium Polymer Battery Pack 5



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.



KC IEC62133 Lithium Polymer Battery Pack 6
