48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery
48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery

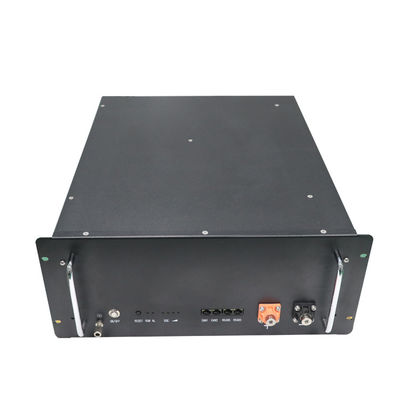

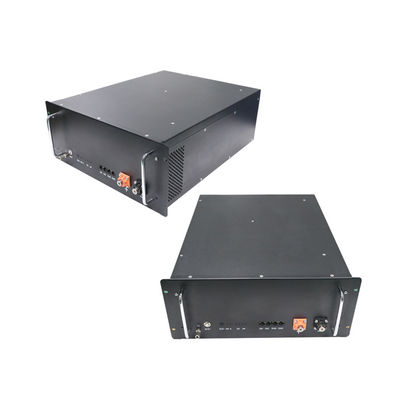

Large Image :  48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, RoHS
Model Number: LFP48V100
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Packaging Details: Carton box
Delivery Time: within 20days
Payment Terms: T/T
Supply Ability: 5000Pieces daily

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery

Description
Battery Type: LiFePO4 Battery Pack Voltage: 48V
Capacity: 100Ah Cycle Life: 2000 Times
Application: Solar Light Batteries, Power Supply, E-boat Weight: 43kg
Size: 432*420*170mm Warranty: 3 Years
Usage: EV/CAR/MOTORCYCLE/UPS/ENERGY STORAGE Type: Deep Cycle Battery
Power Energy Storage Battery 200ahKeyword: China 48v Deep Cycle Solar
High Light:

48V 100Ah Lifepo4 Battery Pack

,

Household 5 KWh Solar Battery

,

5 kwh lithium ion battery

48V 100Ah lifepo4 battery pack 5KWh Household Solar Battery Storage



Item
Houshold Solar stroage Battery Pack Description
Product Name
2.4kWh Pack
2.8kWh Pack
4.8kWh Pack
5.6kWh Pack
Ah Capacity
48V 50Ah
51.2V 55Ah
48V 100Ah
51.2V 110Ah
Energy Capacity
2.4kWh
2.8kWh
4.8kWh
5.6kWh
Cell Type
3.2V LiFePO4 prismatic cells
Cell Number
15 cells
16 cells
30 cells
32 cells
Cell Capacity
50Ah
55Ah
50Ah
55Ah
Cell Connection
15S
16S
2P15S
2P16S
Typical Voltage
48VDC
51.2VDC
48VDC
51.2VDC
Working Voltage Range
42V-54V
44.8V-57.6V
42V-54V
44.8V-57.6V
Dynamic voltage difference between cells
≤50mv
Maximum Discharging Current
1C
Maximum Charging Current
0.5C
BMS Integrated
Yes
BMS Communication
RS485
BMS Active Equalization
Yes
SOC Range
5% - 95%
Usable Capacity
2.16kWh
2.52kWh
4.32kWh
5.04kWh
Lifespan
5000 cycles
Warranty
9MWh per kWh BTT or 10 years, depends on which one comes sooner
Working Temperature Range
0℃ - 45℃
Storage Temperature Range
-20℃ - 45℃
Power Connection
IP67 push and plug connector
Self-consumption
25℃ 40%SOC
5% per month
Dimensions
2U 483x89x428mm
3.5U 483x160x428mm
Weight
24KG
25KG
46KG
47KG



Solar street Light Battery 100Ah rechargeable 48v Lifepo4 battery pack



48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 048V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 1

Related battery charger for 48 volt lifepo4 portable solar battery pack

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 2

Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:



Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge Dimension (mm) with case Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52



Lifepo4 rechargeable battery packs for other applications.

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 3



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 4



Quality Control



48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 6



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

48V 100Ah Lifepo4 Battery Pack Household 5 KWh Solar Battery 7
