Model Number: | LFP12V80 |
MOQ: | 10pieces |
Packaging Details: | Carton box or wooden box |
Payment Terms: | T/T |
LiFePO4 Battery Pack 12V 80Ah For Solar Power System Off Grid System Golf Cart
Electrical Characteristics |
Nominal Voltage | 12.8V |
Nominal Capacity | 80Ah | |
Energy | 1024Wh | |
Internal Resistance(AC) | ≤20mΩ | |
Cycle Life | >2000 cycles @ 1C 100% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Standard Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV) | |
Charge Current | 20A | |
Max. Charge Current | 40A | |
Charge Cut-off Voltage | 15.6±0.2V | |
Standard Discharge | Continuous Current | 80A |
Max.Pulse Current | 150A(<3s) | |
Discharge Cut-off Voltage | 8V | |
Envitonmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
IP Class | IP65 | |
Mechanical | Plastic Case | ABS |
Approx.Dimensions | 330mm*175mm*220mm | |
Approx.Weight | 12.0kg | |
Terminal | Customize |
Advantages of 12 Volt 100Ah Lifepo4 Battery Pack Solar Storage Batteries
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery
helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes

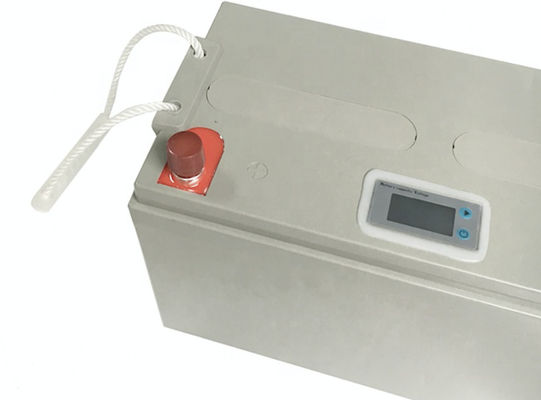

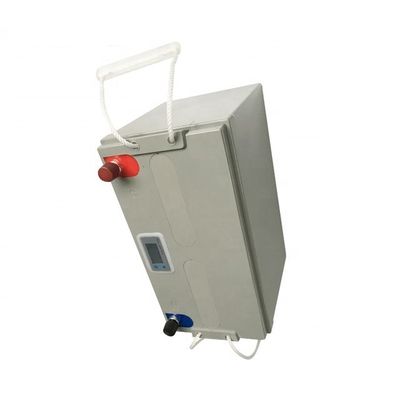

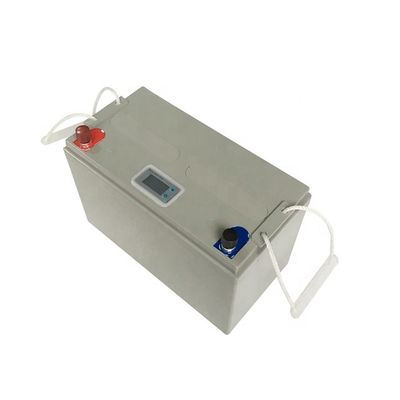

Details images for Lifepo4 battery pack 12 Volt 80Ah lithium ion solar backup power system
Other hot sale lithium battery solar energy storage batteries:
Solar Storage Battery | |||||
Voltage | Typical Capacity | Charge | Discharge | Dimension(mm) | Weight(Kg) |
12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 4.5 |
24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Other hot sale lifepo4 rechargeable battery packs:
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
