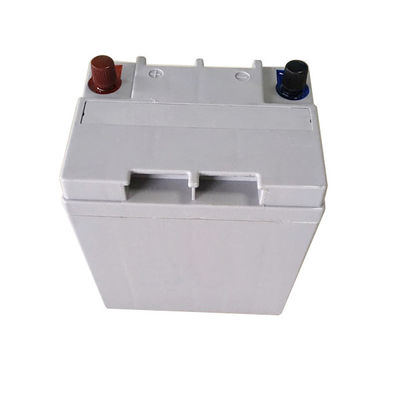

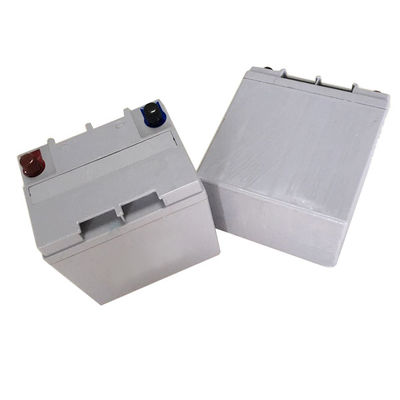

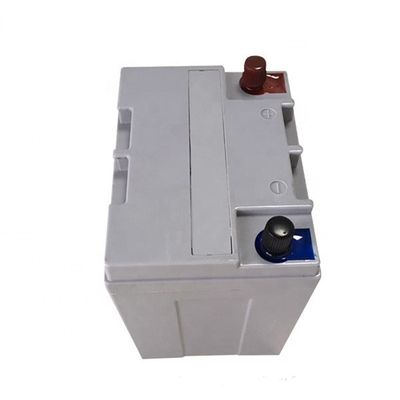

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack
600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack

Large Image :  600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, RoHS
Model Number: LFP12V40
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Packaging Details: Carton box
Delivery Time: within 20days
Payment Terms: T/T
Supply Ability: 5000Pieces daily

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack

Description
Battery Type: LiFePO4 Battery Pack Voltage: 12V
Capacity: 50Ah Cycle Life: 2000 Times
Application: Solar Light Batteries, Power Supply, E-boat Weight: 8.5kg
Size: 195*165*175mm Warranty: 3 Years
High Light:

600Wh LiFePO4 Lithium Iron Phosphate

,

50Ah 12V Battery Pack

,

LiFePO4 12V Battery Pack 600Wh

12V Battery Pack 50Ah LiFePO4 Lithium Iron Phosphate 12 Volt portable power pack



Deep cycle Rechargeable 50Ah 12 volt LiFePO4 Battery Pack with BMS and case
Nominal Voltage: 12V Energy: 600Wh
Rated Capacity: 50Ah Specifi Energy: 102.4Wh/kg
Internal Resistance: ≤50mΩ Cycle Life: 2000+
Charging and Discharging Parameters
Charge cut-off volt: 14.6V Discharge cut-off volt: 10V
Maximum Charge current: 30A Maximum Discharge current: 50A
Peak Discharge current: 100A Suggested charge Volt: 14.6V
Operation Temperature Parameters Storage Temperature Parameters
Charge: 0~45℃ Less than a year: 0~25℃
Discharge: -20~60℃ Less than three months: -10~35℃
Recommended: 18~28℃
Mechanical Properties
Dimension Length: 195mm Housing materials: ABS
Dimension Width: 165mm Terminal size: M8
Dimension Heigth: 175mm Cell model: 3.2v 50ah
Weight:   Configuration: 4S1P



BMS function:

Protect battery from Overcharge, Overdischarge, Overcurrent, Short circuit
Advantage:
High safety(no fire,no explosion) Light weight High energy density Long lifespan
Environmentally friendly Waterproof No memory effect Easy maintenance
Why choose us:
High qualified : ISO9001, CE,BIS,MSDS, UL,UN38.3
Strict inspection: Every step from incoming to shipping
Fast lead time: 10-12 days will reach customers for samples
Quality assurance: 2 years warranty



Advantages of Lithium Iron phosphate battery pack:

1) High storage capacity

2)Good charge acceptance, can be high current charge (0.8C-1C)

3)Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.

4)Can be super-deep discharge and repeated to make discharge, battery will not undermine.

5)Well adapt to the temperature, can be used within -50~60°C.

6)Long design service life, double the life of lead acid batteries.

7)Environmental protection; It is easy to recycle and no pollution.



FAQ for Lifepo4 solar light battery:

Q1. Can we put different LiFePO4 battery pack in parallel or series by ourself?

A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:

1. Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.

2. Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.

3. Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery. 4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q2. Does your battery pack include BMS? Can we use it for car?

A2: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car.

Do not use it for standard car directly, that will need more complex design BMS for the pack.



Solar street Light Battery 40Ah rechargeable 12 volt Lifepo4 battery pack



600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 0600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 1



Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:

Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge Dimension (mm) with case Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52



Lifepo4 rechargeable battery packs for other applications.

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 2



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 3



Quality Control



600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 5



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.

600Wh LiFePO4 Lithium Iron Phosphate 50Ah 12V Battery Pack 6
