LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries

LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries
LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries

Large Image :  LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: IFR26650-7S10P
Payment & Shipping Terms:
Minimum Order Quantity: 200pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 3'000Pieces daily

LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries

Description
Battery Type: Lithium Iron Phosphate Battery Pack Model: IFR26650 6S10P
Nominal Voltage: 25.6V Nominal Capacity: 30Ah
Cycle Life: 2000times Discharging Rate: 1C
Anode Material: Lifepo4 Application: Electronic Scooter, E-bike
Lead Time: 15days Battery Warranty: 1year
High Light:

LFP Lifepo4 26650 Battery Pack

,

30Ah 24V Rechargeable Lithium Batteries

,

IEC62133 26650 lifepo4 battery

Lifepo4 LFP 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries

NO.
Item
General Parameter
Remark
1
Model
IFR 26650
single cell
2
Casing material for single
steel case
single cell
3
Standard capacity(0.2C5A
30Ah

4
Minimum Capacity(1C5A)
29Ah

5
Rated voltage
25.6V
Work voltage
6
Max.Charge voltage
29.2V

7
Cut-off voltage
20.0V

8
Standard charge and disc
6A
0.2C5A
9
charging Time
5.0hours
0.2C5A
10
Continuous discharge cur
30A
1C5A
11
Weight(Approx)
About 7.5kg

12
Impedance(Max, at 1000H
≤ 40mΩ

13
Charge method

(CC/CV)Standard
CC 0.2C 29.2V cut off

CV 29.2V 0.05C cut of

14
Operate temperature
Charge
0℃~45℃
Discharge
-20℃~60℃
Storage
-20℃~45℃

24V 36V 48V 72V lifepo4 rechargeable battery pack main applications:



E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.

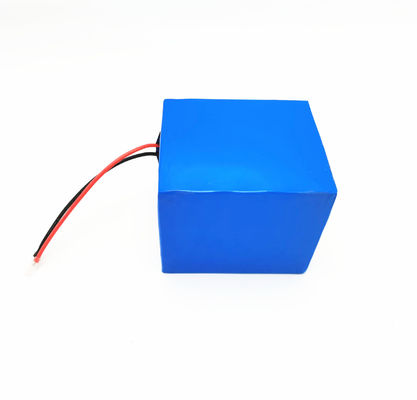

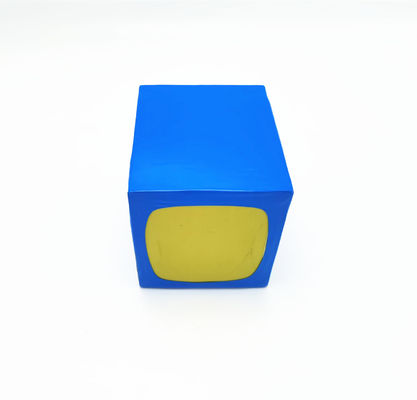

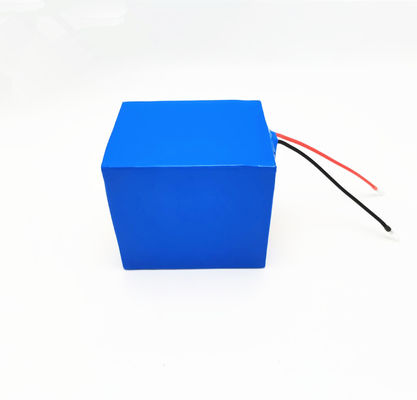

Detailed images for 24V  30Ah lithium Iron Phosphate battery pack LFP 26650 battery packs



LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 0LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 1LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 2



LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 3





Customized lithium rechargeable battery packs



LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 4

Cautions and Warnings for Using Lithium ion Battery

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 5



Quality Control



LFP Lifepo4 26650 Battery Pack 30Ah 24V Rechargeable Lithium Batteries 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
