| Model Number: | ICR18650-3S1P |
| MOQ: | 1000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

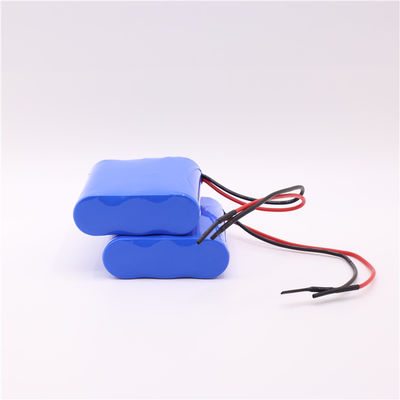

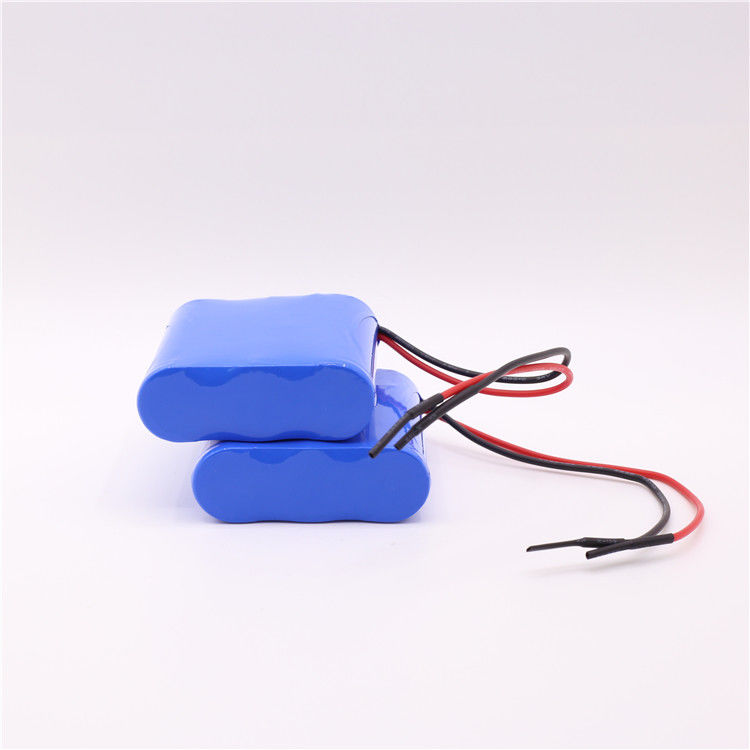

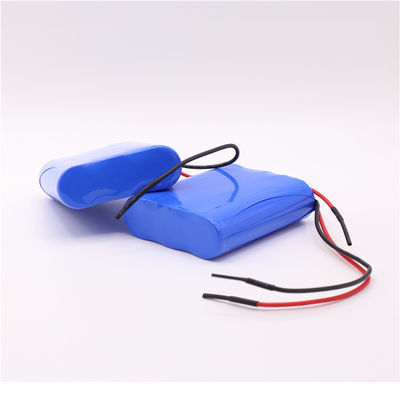

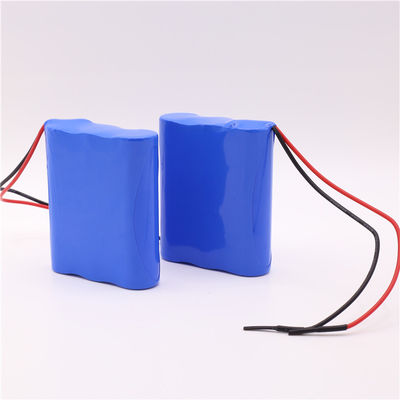

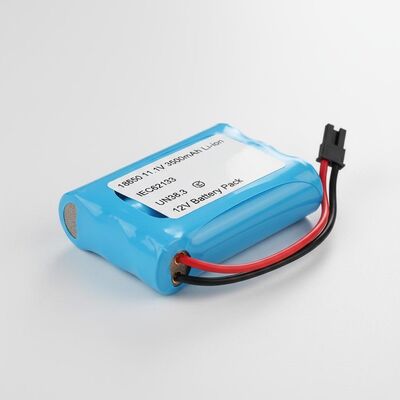

18650 11.1V 3500mAh Li Ion IEC62133 UN38.3 12V Battery Pack
| Item | Rating | Note | ||
| Capacity | Typical | 3500mAh |
Discharge:0.2CmA (1320mA) cut off Voltage:9V for cell |
|
| Minimum | 3500mAh | |||
| Nominal Voltage | Average 11.1V |
Discharge:0.2CmA (1320mA) cut off Voltage:9V for cell |
||
| AC Impedance Resistance | ≤100mΩ | |||
| Discharge Cut-off Voltage | 6.00V | |||
| Charge Current | 1.75A | Standard Charge | ||
| Charge Voltage | 12.6V | |||
| Max. Charge Voltage | 12.6V | |||
| Charge Time | Approx 2.5h | Charge: 0.5C | ||
| Max. Charge Current | 3500mA | 1.0CmA | ||
| Max. Discharge Current | 3500mA | |||
| Weight | Approx 160g | |||
|
Operating Temperature |
Charge | 0~+45°C | ||
| Discharge | -20~+60°C | |||
|
Storage Temperature |
less than 1 month | -5~+35°C |
Recommended storage temperature: 20°C,at the shipment state |
|
| less than 3 months | -5~+35°C | |||
Detailed images: 18650 Lithium Battery 11.1V 2600mAh 12V Lithium Battery Packs
Applications for 11.1V 2600mAh 18650 12V lithium battery pack
1.Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright flashlight.
2.Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight,
3.Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
speaker, microphone, sound equipment, audio, Digital camera, vidican.
4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
electric blanket.
5.Medical devices
6.Instruments and meters: water meter, gas meter.
7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
8.Power tools: electric drill, mower
9.UPS, backup energy, storage energy.
Customized 18650 lithium battery packs 7.4V, 11.1V, 14.8V
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list | ||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
