| Model Number: | ICR16340 |
| MOQ: | 5000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
Rechargeable battery cell CR123 ICR16340 17335 3.7V 700mAh Li-Ion Battery For laser pen
| ICR17335 3.7V 750mAh Cylindrical li-ion rechargeable battery | ||
| No, | Item | General Parameters |
| 1 | Nominal capacity | 750mAh at 0.2C |
| 2 | Nominal voltage | 3.70V |
| 3 | Charge ending voltage | 4.2V |
| 4 | Discharge ending voltage | 2.75V |
| 5 | Max charge current | 750mA |
| 6 | Max discharge current | 1500mA |
| 7 | Typical weight | 15.7±0.5g |
| 8 | Operating temperature range | charge 0℃~45℃ |
| 9 | discharge -20℃~60℃ | |
| 10 | Internal resistance | less or equal to 120mΩ (AC impedance, 1KHz |
| 11 | Cycles number more than 300 cycles | The battery is charged by 0.5C, and then it is discharged by 0.5C. The rest time after discharge is 0.5~1h in each cycle, unit the discharge capacity of less than 60% C mAh .Then consider the cycle to terminate. |
| 12 | Shelf life | 1 year |
| 13 | Storage temperature | Less than 1 year: -20~25 ℃ |
| less than 6 months:-20~35 ℃ | ||
| less than one month:-20~45℃ | ||
| 14 | Cell Dimension | High:33.50±0.5mm |
| Diameter:17.0±0.5mm | ||

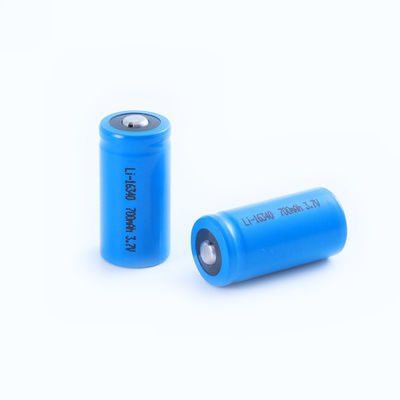

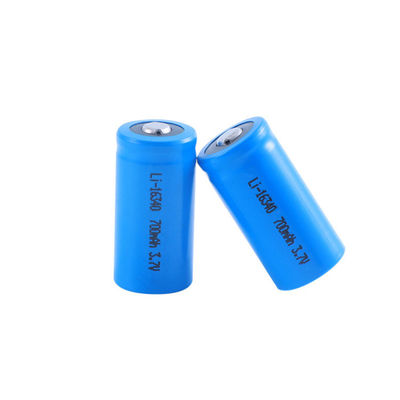

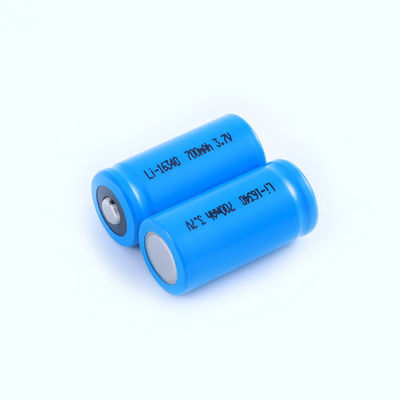

Detailed images for 16340 Lithium Rechargeable Batteries 700mAh 3.7V flashlight battery
Customized lithium rechargeable battery packs
Production process for rechargeable Lithium ion cylindrical Battery
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list | ||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
