| Model Number: | ICR16340 |
| MOQ: | 5000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

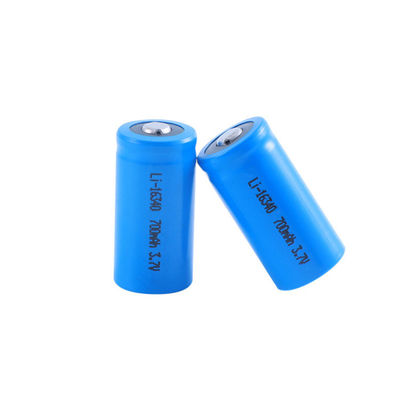

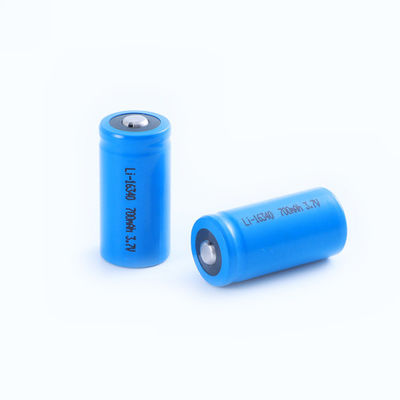

| Item Name | 16340 Battery |
| Model Brand | OEM |
| Voltage | 3.7V |
| Capacity | 700mAh |
| Dimension | 16*34mm |
| Discharge Current | Continuous: 0.2~1C Pulse: 1C~3C |
| Temperature | Charge: 0℃ to 45℃ Discharge: -20℃ to 60℃ |
| Storage Temperature | -20℃ to 45℃ |
| Certification | CE, FCC, CB, KC, Rohs, IEC62133, UN38.3 |
| Application | Laser pen, flashlight, Portable Fan, etc. |
| Sample Lead Time | 7-10 working days |
| Production Lead Time | 7-15 days for available designs 20-30 days for customized |
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
|---|---|---|---|---|---|---|
| ICR14500 | 3.7V | 600mAh | 13.9*48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mAh | 13.9*48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mAh | 13.9*48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mAh | 18.0*49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mAh | 18.0*49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mAh | 18.0*49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mAh | 18.0*65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mAh | 18.0*65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mAh | 18.0*65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mAh | 18.0*65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mAh | 26.3*65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mAh | 26.3*65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mAh | 18.0*65.2±0.2 | 0.2-1C | 5C | 45 |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
