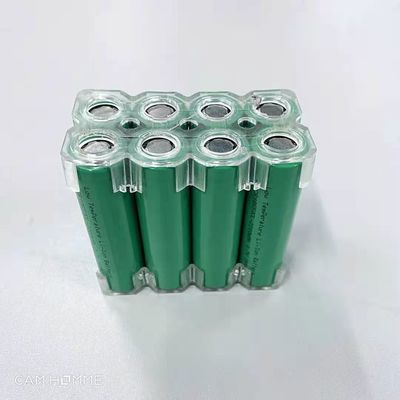

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650
3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

Large Image :  3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: ICR18650
Payment & Shipping Terms:
Minimum Order Quantity: 1000pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 100'000Pieces daily

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

Description
Battery Type: Lithium Ion Battery Cell Model: ICR18650
Nominal Voltage: 3.7V Nominal Capacity: 3500mAh
Cycle Life: 500times Discharging Rate: 1C
Anode Material: Lithium Cobaltate Lead Time: 15days
Working Temperature: -40-60℃ Charging Temperature: 0 ~ 60℃
High Light:

3500mah Low Temperature Lithium Ion Battery

,

3.7v Low Temperature Lithium Ion Battery

,

Lithium Ion Battery Cell 18650

Low Temperature -40℃ Battery Lithium Ion Rechargeable Battery Cell 18650 3.7v 3500mah



Items

Specifications

Remarks

1

Rated charge

Limiting 1.7A and constant 4.2V charge for 2.5h or 100mA at 23 oC.

2

Rated discharge

Constant 0.68A discharge until 2.5V at 23 oC.

3

Rated capacity

3.35Ah (Minimum) 3.45Ah (Typical)

Rated discharge capacity after rated charge.

4

Nominal voltage

3.6V

Mean voltage during rated discharge after rated charge.

5

Shipping voltage

≥ 3.45V

Nominal approximate state of charge ≤ 30%.

6

Internal resistance

≤ 35mΩ

Fresh cell measured by AC impedance at 1kHz

7

End of charge voltage

4.20  0.05V



8

End of discharge voltage

2.5V

Discharge voltage for determination of rated capacity.

9

Charging time

150 min

Rated charge.

10

Maximum charging current

1.7 A

See Section 4.14

Maximum discharging current

10 A

Cycle life is reduced at high rates.

11

Operating temperature

Charging

0 ~ 60 oC

See Section 4.14

Discharging

-40 ~ 60 oC



12

Storage temperature for shipping cell

< 35 oC

Recommended temperature less than 23 oC for long term storage.

13

Shelf life

1 year

See Section 5.4.

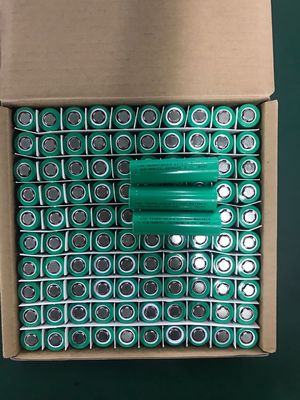

Detailed images for Low temperature lithium battery cells



3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 03.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 1

Lithium ion battery Low Temperature -40℃ discharge performance



Items

Condition

Capacity

Test Method

1

Discharge Capacity at 23 oC

0.68 A

≥3.35Ah

Discharge capacity to 2.5V after rated charge

1.7 A

≥3.30Ah

Discharge capacity to 2.5V after rated charge

3.4 A

≥3.20Ah

Discharge capacity to 2.5V after rated charge

6A

≥3.10Ah

Discharge capacity to 2.5V after rated charge

10 A

≥3.00Ah

Discharge capacity to 2.5V after rated charge

2

Temperature Discharge Capacity at 0.68A

45 ℃

≥3.35Ah

Discharge capacity to 2.5V after rated charge at 23 o

0 ℃

≥3.10Ah

Discharge capacity to 2.5V after rated charge at 23 oC

-20

≥2.70Ah

Discharge capacity to 2.5V after rated charge at 23 oC.

-30

≥2.00Ah

Discharge capacity to 2.0V after rated charge at 23 oC.



Customized lithium rechargeable battery packs



3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 2

Cautions and Warnings for Using Lithium Battery cells

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45
