Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133

Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133
Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133

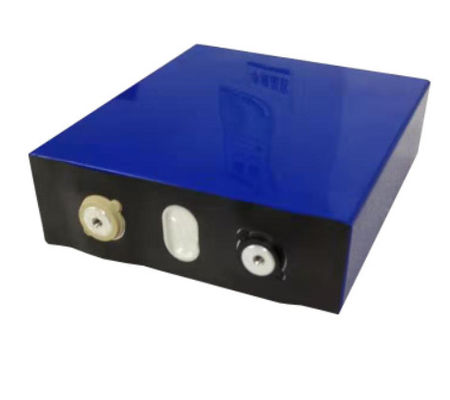

Large Image :  Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: LFP280Ah
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Packaging Details: Bulk packing
Delivery Time: within 10days
Payment Terms: T/T
Supply Ability: 10'000Pieces daily

Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133

Description
Battery Type: Lithium Iron Phosphate Battery Nominal Voltage: 3.2Volt
Typical Capacity: 280Ah Battery Cycle Life: 2000 Times
Battery Weight: 1.8kg Size: 175*205*72mm
Initial Impedance: ≤5mΩ Certificate: MSDS, IEC62133, UN38.3
Charge Cut Off: 3.65V Discharge Cut Off: 2V
High Light:

Prismatic LiFePO4 Battery Cell

,

LiFePO4 Battery Cell IEC62133

,

280AH 270AH Prismatic LiFePO4

LiFePO4 280AH 270AH Prismatic LiFePO4 Battery Cell cell for EV Solar electronic Vehicle

Nominal Voltage
3.2V
Nominal Capacity
270AH (others capacity 20AH/25AH/30AH/50AH/80AH/100AH/120AH/200AH/280AH)
Discharge cut-off
2.5V
Charge cut-off
3.65V
Charge current
54A
Discharge current
270A
Peak discharge current
540A
Impedance Resistance
≤ 5mΩ
Dimension
175*72*205mm
Weight
5.5KG
Discharge Temperature
Range
-4°F ~ 140°F
-20°C ~ 60°C
Charge Temperature range
32°F ~ 113°F
0°C ~ 45°C
Charge Method
CC/CV
Cycle Life
over 2000 times

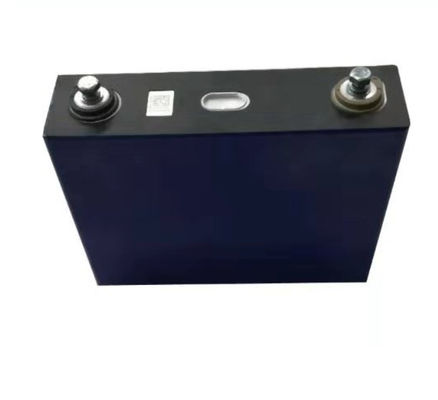

Detailed Images for: LiFePO4 280AH 270AH Prismatic LiFePO4 Battery Cell

Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 0Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 1

FAQ for Rechargeable Prismatic LiFePO4 Battery cell



Q: Can I use Lithium Iron batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?



A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.



Other hot sale lithium Iron Phosphate cylindrical rechargeable battery cell:

Lifepo4 Cylindrical Battery cell List
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharge Rate Weight(g) Cycle life (80% DOD)
IFR10440 3.2V 200mAh 10.3*44.2 0.2-0.5C 0.2-3C 7 ≧2000
IFR14430 3.2V 400mAh 14.2*43 0.2-0.5C 0.2-3C 13 ≧2000
IFR14500 3.2V 600mAh 14.2*50.2 0.2-0.5C 0.2-3C 18 ≧2000
IFR16340 3.2V 400mAh 16.2*34.2 0.2-0.5C 0.2-3C 13 ≧2000
IFR18500 3.2V 1000mAh 18.1*50.2 0.2-0.5C 0.2-3C 34 ≧2000
IFR18650 3.2V 1500mAh 18.5*65.3 0.2-0.5C 0.2-3C 42 ≧2000
IFR18650 3.2V 1800mAh 18.5*65.3 0.2-0.5C 0.2-3C 62 ≧2000
IFR22650 3.2V 1800mAh 22.5*65.3 0.2-0.5C 0.2-3C 64 ≧2000
IFR26650 3.2V 3400mAh 26.5*65.3 0.2-0.5C 0.2-3C 85 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR32700 3.2V 6000mAh 32.5*65.3 0.2-0.5C 0.2-3C 150 ≧2000



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 2



Quality Control



Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 3



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 4



Factory Tour:



Solar EV 280AH 270AH Prismatic LiFePO4 Battery Cell IEC62133 5
