| Model Number: | IFR14500 |
| MOQ: | 5000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
AA IFR 14500 3.2V 600mah LiFePO4 Rechargeable Batteries for Solar Lights
| No. | Items | Specifications | Remark | |
| 1 | Nominal Capacity | 600mAh | 0.2C Standard discharge | |
| 3 | Nominal Voltage | 3.2V | ||
| 4 | Discharge end voltage | 2.5V | ||
| 5 | Charge Voltage | 3.65V±0.03V | By standard charge method | |
| 6 | Standard charging method | 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to≤0.01C | ||
| 7 | Charge current | 0.2C | 120mA | Standard charge, charge time about 6h(Ref) |
| 0.5C | 300mA | Rapid Charge, charge time about: 3h(Ref) | ||
| 8 | Standard discharging method | 0.2C constant current discharge to 2.5V | ||
| 9 | Cell Internal Impedance | ≤50mΩ | Internal resistance measured at AC 1KHZafter 50% charge | |
| 10 | Maximum charge current | 1C | 600mA | continuous charge |
| 11 | Maximum discharge current | 3C | 1800mA | continuous discharge |
| 12 | Operation Temperature and relative humidity Range | Discharge | -20~60℃ 60±25%R.H. | Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| Charge | 0~45℃ 60±25%R.H. | |||
| 13 | Storage temperature for a long time | ‘-10~45℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery with protect circuit when storage for three months. | |

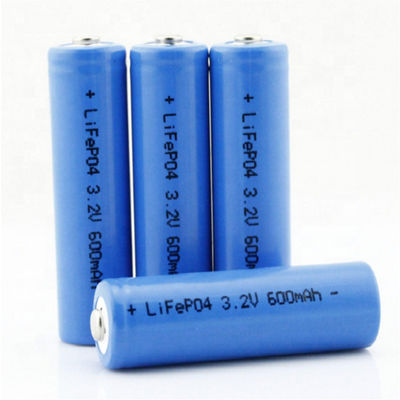

Details Images for: Lifepo4 14500 3.2V 600mAh rechargeable battery cell
FAQ for Lithium cylindrical Battery cell 14500 3.2V 600mAh
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
Other hot sale lifepo4 rechargeable battery cells:
| Lifepo4 Cylindrical Battery cell List | |||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharge Rate | Weight(g) | Cycle life (80% DOD) |
| IFR10440 | 3.2V | 200mAh | 10.3*44.2 | 0.2-0.5C | 0.2-3C | 7 | ≧2000 |
| IFR14430 | 3.2V | 400mAh | 14.2*43 | 0.2-0.5C | 0.2-3C | 13 | ≧2000 |
| IFR14500 | 3.2V | 600mAh | 14.2*50.2 | 0.2-0.5C | 0.2-3C | 18 | ≧2000 |
| IFR16340 | 3.2V | 400mAh | 16.2*34.2 | 0.2-0.5C | 0.2-3C | 13 | ≧2000 |
| IFR18500 | 3.2V | 1000mAh | 18.1*50.2 | 0.2-0.5C | 0.2-3C | 34 | ≧2000 |
| IFR18650 | 3.2V | 1500mAh | 18.5*65.3 | 0.2-0.5C | 0.2-3C | 42 | ≧2000 |
| IFR18650 | 3.2V | 1800mAh | 18.5*65.3 | 0.2-0.5C | 0.2-3C | 62 | ≧2000 |
| IFR22650 | 3.2V | 1800mAh | 22.5*65.3 | 0.2-0.5C | 0.2-3C | 64 | ≧2000 |
| IFR26650 | 3.2V | 3400mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 85 | ≧2000 |
| IFR26650 | 3.2V | 3600mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 90 | ≧2000 |
| IFR26650 | 3.2V | 3600mAh | 26.5*65.3 | 0.2-0.5C | 0.2-3C | 90 | ≧2000 |
| IFR32700 | 3.2V | 6000mAh | 32.5*65.3 | 0.2-0.5C | 0.2-3C | 150 | ≧2000 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
