| Model Number: | LFP12V7 |
| MOQ: | 200pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |

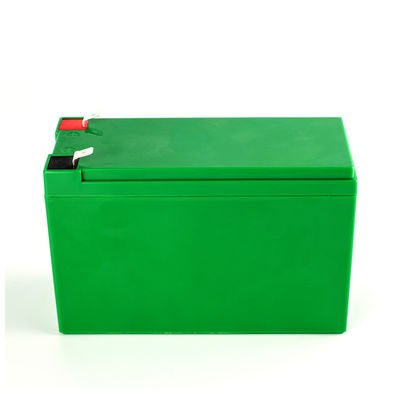

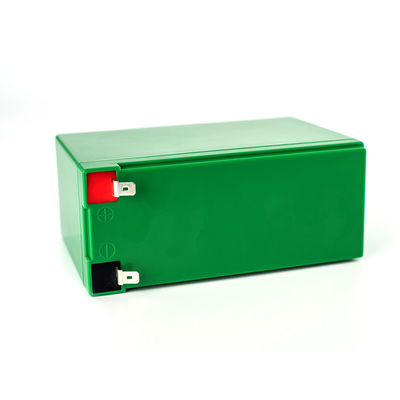

Solar Street Light Battery 12V 7Ah Lifepo4 Energy Storage Battery With ABS Case
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 7Ah |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 2 parallel connected application |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 13.8±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Max. Charge Current | 2A |
| Max. Continuous Discharge Current | 3A |
| Cycle Life | > 2000 cycles |
| Dimension | customized |
| Weight | 1.2Kg |
| Operation Temperature Range | Charge: 0~45℃; |
| Discharge: -20~60℃ | |
| Recommended operating temperature: 15℃~35℃ | |
| Self-Discharge Rate | Residual capacity: ≤5%/month; |
Solar street Light Battery 12V 7Ah Lifepo4 rechargeable battery pack
Advantages of Lifepo4 solar light battery:
1) High storage capacity
2)Good charge acceptance, can be high current charge (0.8C-1C)
3)Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.
4)Can be super-deep discharge and repeated to make discharge, battery will not undermine.
5)Well adapt to the temperature, can be used within -50~60°C.
6)Long design service life, double the life of lead acid batteries.
7)Environmental protection; It is easy to recycle and no pollution.
Other hot sale lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
