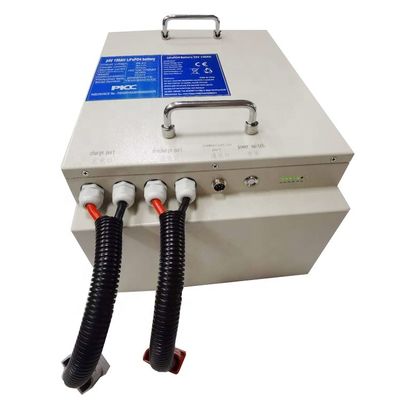

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift
Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift

Large Image :  Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift

Product Details:
Place of Origin: China
Certification: MSDS, RoHS
Model Number: LFP48V500
Payment & Shipping Terms:
Minimum Order Quantity: 3pieces
Packaging Details: Carton box or wooden box
Delivery Time: within 30days
Payment Terms: T/T
Supply Ability: 30Pieces daily

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift

Description
Battery Type: LiFePO4 Battery Pack Voltage: 48V
Capacity: 500Ah Design: With BMS, LED, Sealed ABS Case With Handle
Weight: 780kg Other ODM Function: RS485/RS232/Can Bus/Bluetooth/self-heating
High Light:

48V 500AH AGV Lithium Battery

,

Lifepo4 Lithium Battery For Forklift

,

48V lithium ion batteries for forklift

Lifepo4 Long Cycle Life 48V 500AH AGV Forklift Battery With Active Balance BMS



1.Basic Characteristic
Model
48V 500AH LiFePO4 forklift Battery
Battery size
985*607*651mm
Adjustable
Battery weight
780kg
Adjustable

Working Temperature
Charge Temperature
0℃ - 45℃
Confirmed
Discharge Temperature
-20℃ - 60℃
Adjustable
2.Technical Data
Rate Voltage
48V
3.2V to 72V






Charge & Discharge
Charge method
CC/CV
Confirmed
Standard Charge current
20-50A
Adjustable
Max Charge Current
100A
Adjustable
Max Charge Voltage
54.75V
Confirmed
Standard discharge current
20-50A
Adjustable
Continous Discharge Current
100A
Adjustable
Peak Discharge Current
200A
Adjustable
Discharge cut-off
37.5V
Confirmed
3. Design



With BMS, with LED indicator, Sealed ABS case with handle
4. Other customise service
Smart function:RS485/RS232/Can Bus/Bluetooth/self-heating
If there is any other special requirements, contact us for confirmation.



Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 0

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 1Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 2

Advantages of the Lifepo4 forklift battery:



Weight and Cycling

LifePO4 batteries are between 1/3-1/4 the weight of traditional lead acid batteries. They also cycle up to more than 2000 times at 100% and 1C rate. However, its life cycles will be more if less 100% DOD and less 1C.



Efficiency and Full Cycle Capacity

Lead acid batteries’ internal resistance requires them to be charged slowly and in stages to keep internal temperatures lower.

While, lifepo4 batteries can be charged at a constant current and constant voltage, which allows them to be recharged quickly and put back into service when they’re needed.



Very Little Wasted Energy

This can be especially important when charging via solar panels.



More specs forklift batteries for choosing:

Forklift Battery /Floor Machine battery
Model Communication Charge Discharge Dimension
24V200AH RS485, CANBUS 1C 1.5C 350X540X160 mm
48V150AH CANBUS, BMS active equalization 1.5C 1.5C 515*400*290mm
80V400AH RS485,add load weight 0.5C 1C 1093*585*760mm
220V80AH RS485 & CANBUS 1C 0.5C 700*650*400mm



Other hot sale products except lifepo4 forklift battery:

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 3

Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 4



Quality Control



Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 6



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.

Long Cycle Life Lifepo4 48V 500AH AGV Lithium Battery For Forklift 7
