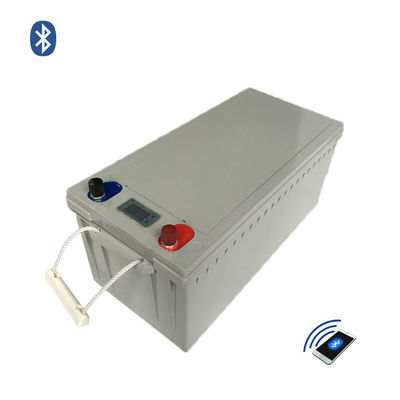

12V 200Ah Lithium Iron Phosphate Battery with Bluetooth and 2000 Cycles for Solar Energy Storage

Model Number:	LFP12V200
MOQ:	10pieces
Packaging Details:	Carton box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, RoHS

Nominal Voltage:

12.8V

Supply Ability:

5000Pieces daily

Highlight:

lithium iron phosphate battery solar

12v 200Ah solar Battery

200 amp hour solar battery

Product Description

Lithium Iron Phosphate Battery Solar 12v 200Ah Battery With Bluetooth

Product Overview

12v 200Ah Lithium Iron Phosphate Solar Energy Storage Battery With Bluetooth

Electrical Characteristics

Nominal Voltage	12.8V
Nominal Capacity	200Ah@0.2C
Energy	2560Wh
Internal Resistance	≤35mΩ
Cycle Life	2000 Cycles @ 0.2C Charging/Discharging, Until 70% Capacity
Self Discharge	≤3.5% per month at 25℃

Standard Charging

Max. Charging Voltage	14.0~14.6V
Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, then changed continuously with constant voltage of 14.6V until current ≤ 0.02C
Charging Current	20A
Max. Charging Current	50A

Standard Discharging

Discharging Current	100A
Max. Continuous Current	150A
Max. Pulse Current	200A (<3S)
Discharging Cut-off Voltage	10.0V

Operating Conditions

Charge Temperature	0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature	0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance	IP55

Structure

Cell & Format	Lifepo4 pouch cell
Casing	Plastic
Dimension (LWH*TH)	522238217 mm
Weight	Approx. 27Kg
Terminal	M8

Key Advantages

High storage capacity
Good charge acceptance, can be high current charge (0.8C-1C)
Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds
Can be super-deep discharge and repeated to make discharge, battery will not undermine
Well adapt to the temperature, can be used within -50~60°C
Long design service life, double the life of lead acid batteries
Environmental protection; easy to recycle and no pollution

Frequently Asked Questions

Q1. Can we put different LiFePO4 battery packs in parallel or series by ourselves?

A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention to:

Make sure the voltage of each battery are same before putting in parallel. If they are not same, charge them to the same rate.
Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery.
If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q2. Does your battery pack include BMS? Can we use it for car?

A2: Yes, our battery pack includes BMS. You can use it for low speed car only or auxiliary power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.

Product Images

Other Available Models

Voltage	Typical Capacity	Charge	Discharge	Dimension (mm)	Weight (Kg)
12V	8AH	0.2C-2C	0.2C-2C	1509265	1.25
12V	10AH	0.2C-2C	0.2C-2C	1509265	1.6
12V	12AH	0.2C-2C	0.2C-2C	1519995	1.8
12V	50AH	0.2C-2C	0.2C-2C	195165175	9.5
12V	100AH	0.2C-2C	0.2C-2C	330175220	19
12V	200AH	0.2C-2C	0.2C-2C	525240215	30
24V	10AH	0.2C-2C	0.2C-2C	18177175	3
24V	30AH	0.2C-2C	0.2C-2C	195165175	12
24V	50AH	0.2C-2C	0.2C-2C	330175220	18
24V	100AH	0.2C-2C	0.2C-2C	485175240	32
48V	10AH	0.2C-2C	0.2C-2C	223106175	7.5
48V	50AH	0.2C-2C	0.2C-2C	522237215	33
48V	75AH	0.2C-2C	0.2C-2C	522237215	42
48V	100AH	0.2C-2C	0.2C-2C	350540160	52

Application Examples

Why Choose Us

Technology

All-weather applicability (-30~60℃), highly safe battery design technology with newest electrolyte and separator technology applied. Full coverage of battery variety including lithium ion cylindrical battery, lithium polymer battery, LiFePO4 battery, solar energy storage battery pack, square aluminum shell, primary battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Quality Control

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Manufacturing Excellence

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
