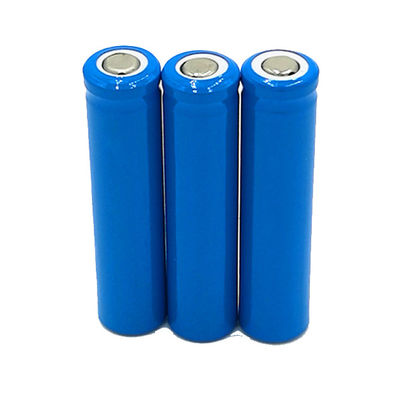

320mAh 3.7V IEC62133 10440 Li Ion Battery AAAA Size Battery for Smart Pen Handwriting

Model Number:	ICR10440
MOQ:	5000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, IEC62133, RoHS

Nominal Voltage:

Nominal Capacity:

320mAh

Max Charge Current:

320mA

Max Discharge Current:

640mA

Discharge Cut-off Voltage:

Dimension:

10.5mm*44.5mm

Supply Ability:

100'000Pieces daily

Highlight:

AAAA Size IEC62133 Battery

320mAh IEC62133 AAAA Size Battery

10440 IEC62133 AAAA Size Battery

Product Description

320mAh 3.7V 10440 Li Ion Battery IEC62133 AAAA Size Battery

Product Overview

AAA AAAA size lithium ion battery 10440 3.7V 320mAh for smart pen handwriting applications.

Model:	10440	Max. Charge Current:	320mA
Capacity:	320mAh	Standard Discharge Current:	320mA
Initial Impedance:	≤200mΩ	Max. Discharge Current:	640mA
Energy:	1.184Wh	Discharge Cut-off Voltage:	3.0V
Charge Voltage:	4.2V	Weight:	About 8g
Charge Method:	CC-CV	Dimension:	10.5mm × 44.5mm
Standard Charge Current:	160mA	Cycle Life:	300

Product Images

Custom Battery Solutions

Safety Guidelines

Don't immerse the battery in water
Don't use and leave the battery near a heat source such as fire or heater
When charging, use a battery charger specifically for that purpose
Don't reverse the positive and negative terminals
Don't connect the battery to an electrical outlet directly
Don't discard the battery in fire or heater
Don't connect the positive and negative terminal directly with metal objects
Don't transport and store the battery together with metal objects such as necklaces, hairpins
Don't strike, throw or trample the battery
Don't pierce the battery with a nail or other sharp object

Related Battery Models

Model No.	Nominal Voltage	Typical Capacity	Size	Charge Rate	Discharging Rate	Weight(g)
ICR14500	3.7V	600mAh	13.9×48.5±0.3	0.2-1C	0.2-2C	19.5
ICR14500	3.7V	750mAh	13.9×48.5±0.3	0.2-1C	0.2-2C	20
ICR14500	3.7V	800mAh	13.9×48.5±0.3	0.2-1C	0.2-2C	20.5
ICR18500	3.7V	1300mAh	18.0×49.7±0.2	0.2-1C	0.2-2C	32
ICR18500J	3.7V	1400mAh	18.0×49.7±0.2	0.2-1C	0.2-2C	31
ICR18500	3.7V	1600mAh	18.0×49.7±0.2	0.2-1C	0.2-2C	32
ICR18650	3.7V	2200mAh	18.0×65.2±0.2	0.2-1C	0.2-2C	40
ICR18650	3.7V	2600mAh	18.0×65.2±0.2	0.2-1C	0.2-2C	45
ICR18650	3.7V	3000mAh	18.0×65.2±0.2	0.2-1C	0.2-2C	48
ICR18650	3.7V	3400mAh	18.0×65.2±0.2	0.2-1C	0.2-2C	50
ICR26650	3.7V	4500mAh	26.3×65.0±0.5	0.2-1C	0.2-2C	80
ICR26650	3.7V	5000mAh	26.3×65.0±0.5	0.2-1C	0.2-2C	85
ICR18650P	3.7V	2600mAh	18.0×65.2±0.2	0.2-1C	5C	45

Why Choose Us

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology
Full coverage of battery varieties

R&D

Experienced R&D team with over 60 engineers
Advanced equipment for OEM and ODM requirements

Quality Control

Comprehensive quality assurance processes

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified

Manufacturing Excellence

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have offered various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery packs since 2001.
