| Model Number: | LFP24V50 |
| MOQ: | 100pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |

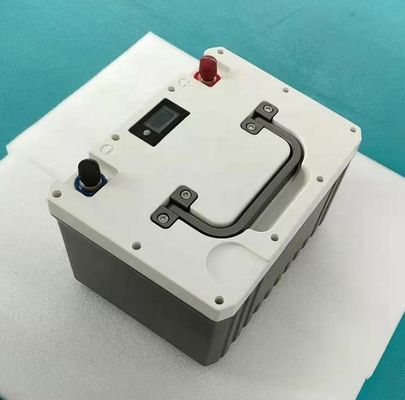

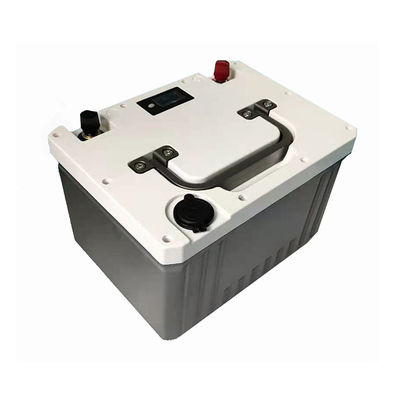

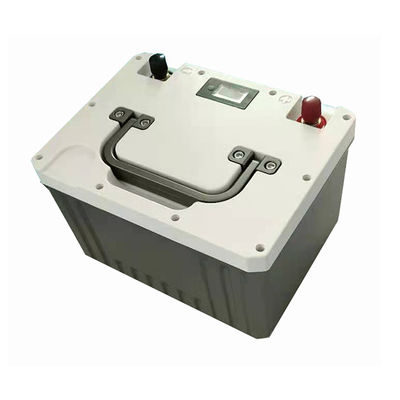

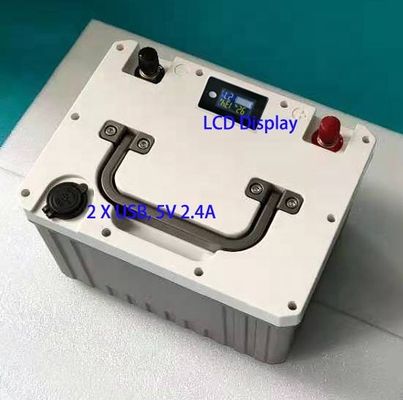

12V 100AH/24V 50Ah Solar Energy Storage Battery For Marine Sail Boat, Fishing Boat, Rickshaw, Golf Cart
| Specification | Value |
|---|---|
| Rated Voltage | 25.6V |
| Rated Capacity | 50Ah |
| Housing | IP65 ABS case |
| Charging Current | 20A |
| Discharge Current | 50A |
| Peak Discharge Current | 100A(3s) |
| Weight | 13Kg |
| Cell Type | 3.2V 50Ah Prismatic Cell |
| Chemistry | LiFePo4 |
| Configuration | 8S1P |
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Cycle Life | 5000 times |
| Dimension(L*W*H) | 370*280*330mm |
| Voltage | Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight (Kg) |
|---|---|---|---|---|---|
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
