Product Details:
|
| Battery Type: | LiFePO4 Battery Pack | Voltage: | 24V |
|---|---|---|---|
| Capacity: | 100Ah | Cycle Life: | 2000 Times |
| Application: | Solar Light Batteries, Power Supply, E-boat | Weight: | 27kg |
| Size: | Customize | Warranty: | 3 Years |
| High Light: | UN38.3 LiFePO4 24v 100ah,24v 100ah Lithium UN38.3,LiFePO4 Solar Rechargeable Battery Pack |
||

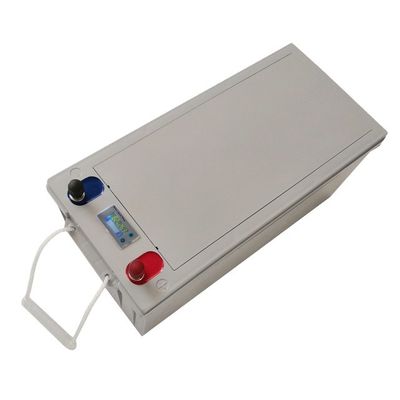

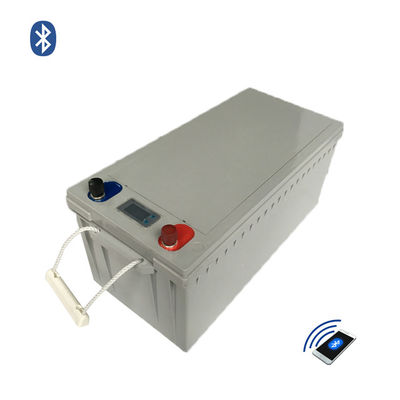

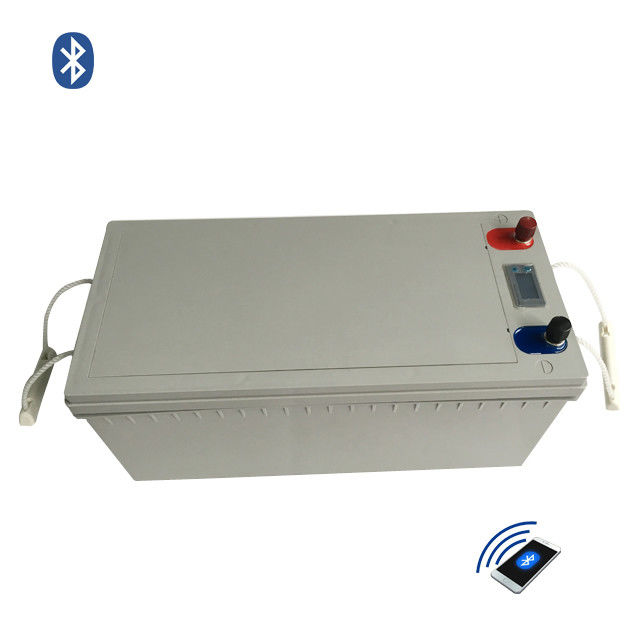

24v 100Ah Lifepo4 battery pack Solar light batteries With Bluetooth
|
Electrical Characteristics |
Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah | |
| Energy | 2560Wh | |
| Internal Resistance(AC) | ≤20mΩ | |
| Cycle Life | >2000 cycles @ 1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV) | |
| Charge Current | 20A | |
| Max. Charge Current | 50A | |
| Charge Cut-off Voltage | 15.6±0.2V | |
| Standard Discharge | Continuous Current | 100A |
| Max.Pulse Current | 150A(<3s) | |
| Discharge Cut-off Voltage | 16V | |
| Envitonmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
| IP Class | IP65 | |
| Mechanical | Plastic Case | ABS |
| Approx.Dimensions | 522mm*240mm*224mm (20.55in.*9.45in.*8.81in.) | |
| Approx.Weight | 27.60kg | |
| Terminal | M8 |
Advantages of Lithium Iron phosphate battery pack:
1) High storage capacity
2)Good charge acceptance, can be high current charge (0.8C-1C)
3)Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.
4)Can be super-deep discharge and repeated to make discharge, battery will not undermine.
5)Well adapt to the temperature, can be used within -50~60°C.
6)Long design service life, double the life of lead acid batteries.
7)Environmental protection; It is easy to recycle and no pollution.
FAQ for Lifepo4 solar light battery:
Q1. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1. Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2. Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3. Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery. 4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.
Q2. Does your battery pack include BMS? Can we use it for car?
A2: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car.
Do not use it for standard car directly, that will need more complex design BMS for the pack.
Solar energy storage battery 12V 200Ah rechargeable Lifepo4 battery pack
Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
