Product Details:
|
| Battery Type: | Lithium Battery Cell | Model: | ICR18650 |
|---|---|---|---|
| Nominal Voltage: | 3.7V | Nominal Capacity: | 2000mAh(2200mAh, 2400mAh, 2600mAh...) |
| End Of Charging: | 2.75V | Cut-off Voltage: | 4.2V |
| Cycle Life: | 500times | Discharging Rate: | 10C |
| Application: | Scooter, Motorcycle, Power Tool, EV | Lead Time: | 7days |
| High Light: | 18650 battery 2000mah 3.7 volt rechargeable lithium cell,UN38.3 18650 10C Battery,ICR 18650 10C Battery |
||

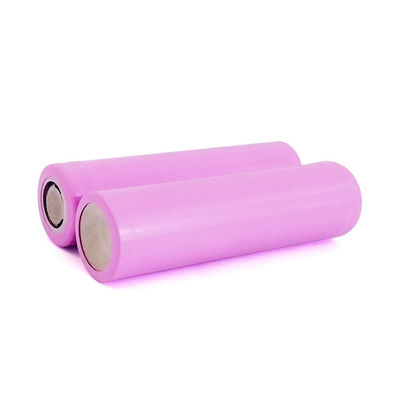

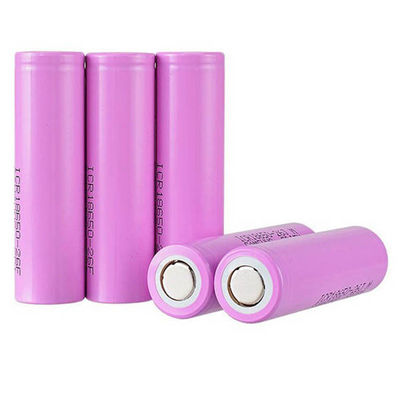

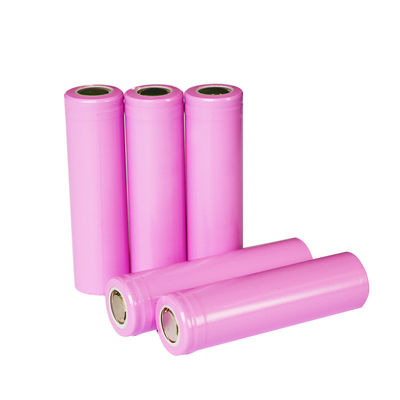

High Discharge Rate 10C 18650 3.7V 2000mAh Lithium Battery 18650 Ion Battery
|
Item
|
Specification
|
Remark
|
|
Nominal Capacity
|
2000mAh
|
|
|
Min Capacity
|
2150mAh
|
23±3℃, 0.2C CC discharge, 2.75V cut-off 23±3℃
|
|
Nominal Voltage
|
3.7V
|
|
|
Standard Charging Current
|
0.2C
|
0～45℃ 0.2C CC(constant charged to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to 0.02C
|
|
Rapid Charging Current
|
1C
|
|
|
Charge Ending Voltage
|
4.2V
|
|
|
Standard Discharging Current
|
0.2C
|
-10～60℃ 0.2C CC(constant current) discharged to 2.75V
|
|
Max. Continuous Discharging Current
|
10C
|
-10～60℃ 3C CC(constant current) discharged to 2.75V
|
|
Max. Short Time Discharging Current
|
15C
|
|
|
Discharge Ending Voltage
|
2.75V
|
|
|
Standard Charging Time
|
5～6h
|
|
|
Rapid Charging Time
|
1.0～1.5h
|
|
|
Impedance
|
≤20 mΩ
|
AC Impedance 1KHz
|
|
Battery Weight
|
～45 g
|
|
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
Illuminate devices: miner lamp, searchlight. Others: toys, models.
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs

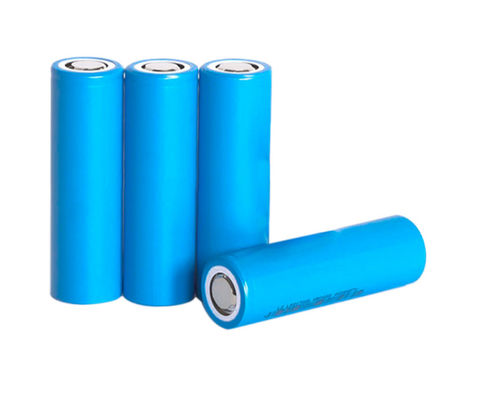

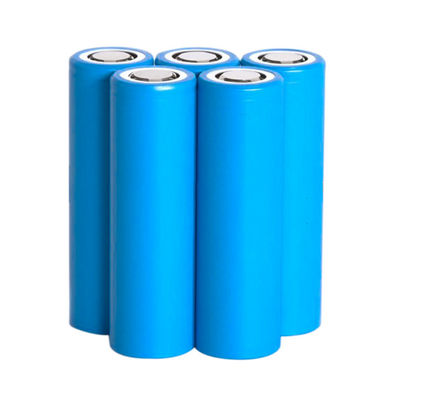

Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list | ||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
