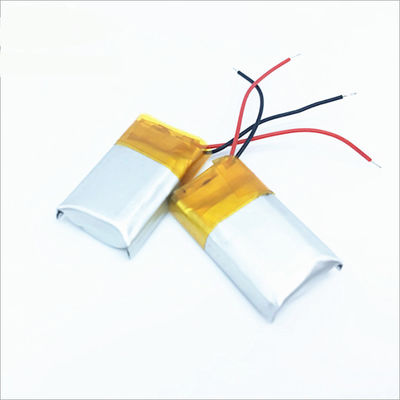

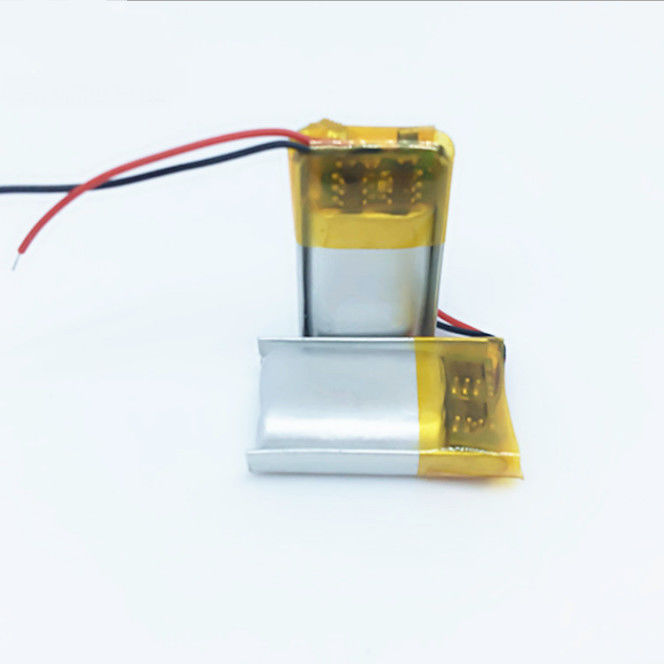

Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V

Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V
Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V

Large Image :  Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: LP501020
Payment & Shipping Terms:
Minimum Order Quantity: 6000pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 50'000Pieces daily

Ultra Small 80Mah Lipo 501020 Li Ion Battery Pack 3.7 V

Description
Battery Type: Lithium Polymer Battery Pack Voltage: 3.7V
Capacity: 80mAh Cycle Life: 500times
Size: 5.2*10*22.5mm Weight: 8g
MOQ: 6000pcs Warranty: 1 Year
Lead Time: 15-20days
High Light:

501020 Li Ion Battery Pack 3.7 V

,

Ultra Small 80Mah Lipo 501020 Li Ion

,

80Mah Lipo 501020 battery

Ultra Small Lithium Polymer Battery Pack 3.7v 80Mah 501020 3.7V Li Battery Pack



Model No.
501020
Max charge current
1C, 1000mA
Standard Charge Current
0.2C/0.5C
Standard Discharge Current
0.2C/0.5C
Capactity
80mAh

Operating temperature
Charging -10°C-45°C
Normal Voltage
3.7V
Discharging -20°C-60°C
Size
5*10*22.5mm


Storage temperature
-10°C-25°C 12 months
Charging voltage
4.2V
-10°C-4°C 6 months
Discharging
Cut off voltage
2.75V
-10°C-45°C 14 months

Other hot-sale Li polymer battery pack models:



Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.



Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.



Following are some of hot-sale models for your reference.



Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh



Applications for ultra small lithium polymer rechargeable batteries:



Widely used for MP3, MP4, GPS, Bluetooth speakers & headsets & selfie sticks, remote controllers, headphone, mini digital camera, portable DVD, MID, PDA, pos machines, interphone, voice recorder, for PSP, backup powers, electric toys and other devices with the same battery size and capacity.
