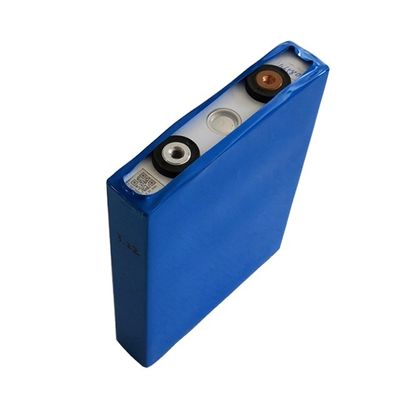

3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
Customer Reviews
Your company's excellent customer service always exceeds my expectations. This is why I consistently go wtih you guys. The quality of your products is very well. We have used 3 different types of your batteries in our projects. All works well.

—— Edgardo from America

The team at Gold Power Energy has always offer fast response of our requirement. And they make a great products.

—— Paolo from Italy

We sale your energy storage system for 5 years, it helps our business grow.

—— Miguel

I'm Online Chat Now

3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light

3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light
3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light

Large Image :  3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: LFP80Ah
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Packaging Details: Bulk packing
Delivery Time: within 10days
Payment Terms: T/T
Supply Ability: 20'000Pieces daily

3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light

Description
Battery Type: Lithium Iron Phosphate Battery Nominal Voltage: 3.2Volt
Typical Capacity: 80Ah Battery Cycle Life: 2000 Times
Battery Weight: 1.8kg Size: 30*135*226mm
Initial Impedance: ≤15mΩ Certificate: MSDS, IEC62133, UN38.3
Charge Cut Off: 3.65V Discharge Cut Off: 2V
High Light:

3.2V 80AH LifePO4 Battery Cell

,

3.2V 80AH Lithium Prismatic Battery

,

LFP80Ah Lithium Prismatic Battery

LifePO4 battery cell 3.2V 80AH for solar street light lithium Prismatic cell



1.Basic Characteristic
Model
3.2V 80AH Prismatic LiFePO4 battery cell
Battery size
30*135*226mm
Adjustable
Battery weight
1.8kg
Adjustable

Working Temperature
Charge Temperature
0℃ - 45℃
Confirmed
Discharge Temperature
-20℃ - 60℃
Adjustable
2.Technical Data
Rate Voltage
3.2V
3.2V to 72V






Charge & Discharge
Charge method
CC/CV
Confirmed
Standard Charge current
20-40A
Adjustable
Max Charge Current
80A
Adjustable
Max Charge Voltage
3.65V
Confirmed
Standard discharge current
20-40A
Adjustable
Continous Discharge Current
80A
Adjustable
Peak Discharge Current
240A
Adjustable
Discharge cut-off
2.5V
Confirmed
3. Battery pack Design
With BMS, with LED indicator, Sealed ABS case with handle
4. Other customise service
Smart function:RS485/RS232/Can Bus/Bluetooth/self-heating
If there is any other special requirements, contact us for confirmation.

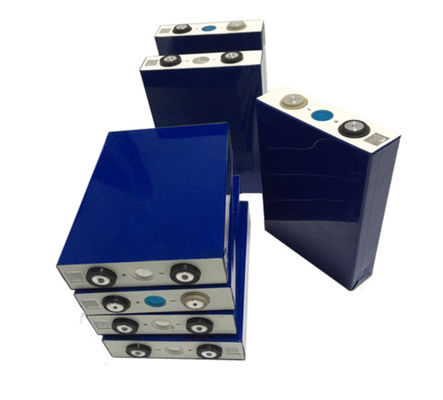

Detailed Images for: LifePO4 battery cell 3.2V 80AH for energy Storage battery system



3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 03.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 1

FAQ for cylindrical Lifepo4 battery cell 14500 3.2V 600mAh



Q: Can I use Lithium Iron batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?



A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.



Other hot sale lifepo4 cylindrical rechargeable battery cells:

Lifepo4 Cylindrical Battery cell List
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharge Rate Weight(g) Cycle life (80% DOD)
IFR10440 3.2V 200mAh 10.3*44.2 0.2-0.5C 0.2-3C 7 ≧2000
IFR14430 3.2V 400mAh 14.2*43 0.2-0.5C 0.2-3C 13 ≧2000
IFR14500 3.2V 600mAh 14.2*50.2 0.2-0.5C 0.2-3C 18 ≧2000
IFR16340 3.2V 400mAh 16.2*34.2 0.2-0.5C 0.2-3C 13 ≧2000
IFR18500 3.2V 1000mAh 18.1*50.2 0.2-0.5C 0.2-3C 34 ≧2000
IFR18650 3.2V 1500mAh 18.5*65.3 0.2-0.5C 0.2-3C 42 ≧2000
IFR18650 3.2V 1800mAh 18.5*65.3 0.2-0.5C 0.2-3C 62 ≧2000
IFR22650 3.2V 1800mAh 22.5*65.3 0.2-0.5C 0.2-3C 64 ≧2000
IFR26650 3.2V 3400mAh 26.5*65.3 0.2-0.5C 0.2-3C 85 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR26650 3.2V 3600mAh 26.5*65.3 0.2-0.5C 0.2-3C 90 ≧2000
IFR32700 3.2V 6000mAh 32.5*65.3 0.2-0.5C 0.2-3C 150 ≧2000



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 2



Quality Control



3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 3



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 4



Factory Tour:



3.2V 80AH LifePO4 Battery Cell Lithium Prismatic Battery For Solar Street Light 5
